Radar Systems

IMSAR has integrated radar systems onto over 100 different aircraft types worldwide. The modular, scalable design of these systems enables standard and custom integrations across a wide range of platforms—from Group 1 UAS to twin-turboprop manned aircraft—utilizing IMSAR CORE components and software.

For Group 1-2 UAS

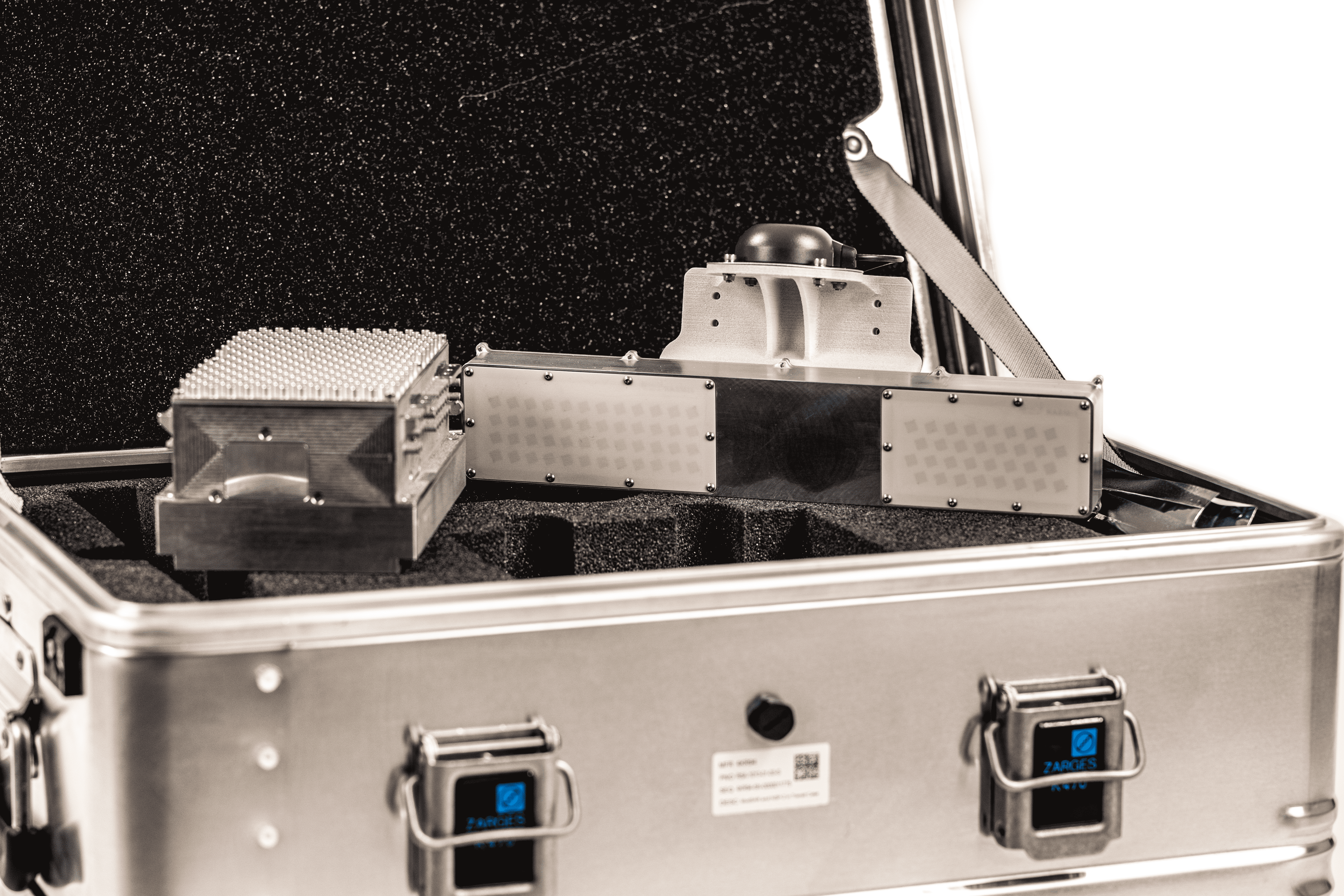

NSP-2

The NSP-2 is the most accessible entry point for airborne radar. Designed for the smallest Group 1-2 UAS, it delivers versatile multi-mode performance in an ultra-low SWaP package. It allows operators to detect hidden targets and conduct surveillance day or night, minimizing cost without sacrificing essential detection capability.

For Group 2-3 UAS

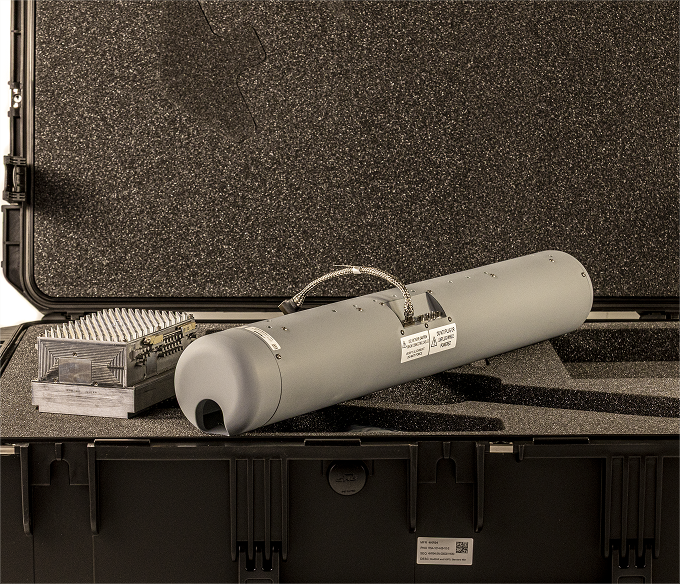

NSP-3

The NSP-3 is the combat-proven, all-around workhorse of the fleet. Widely deployed for both ground and maritime missions, it delivers versatile multi-mode performance in a low-SWaP package. The NSP-3 preserves platform endurance while providing a reliable sensor that complements EO/IR payloads in any environment.

For Group 3-4 UAS

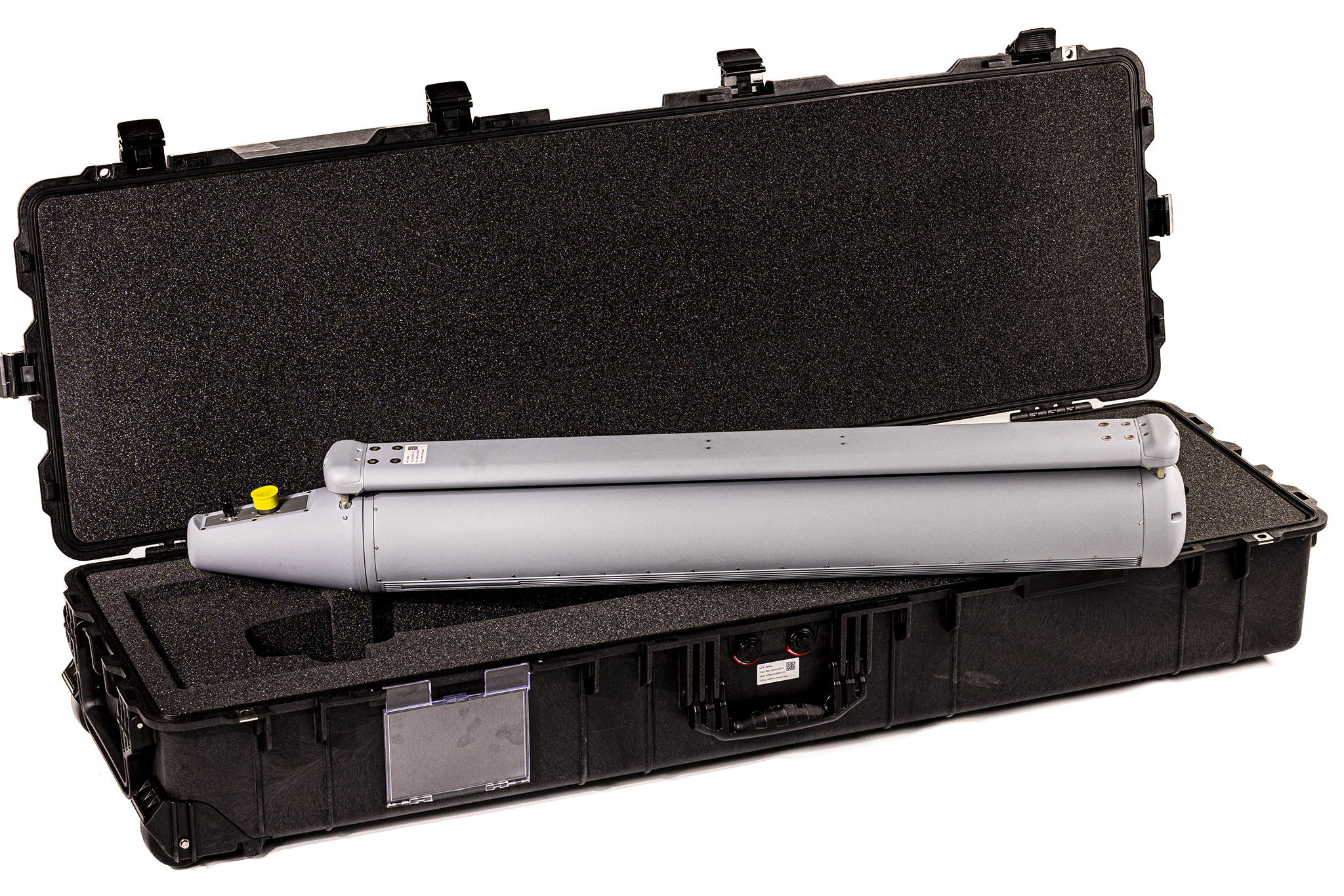

NSP-5

Designed for platforms with greater payload capacity, the NSP-5 leverages increased transmit power and a larger aperture to extend operational range. It offers enhanced wide-area search and tracking performance, providing a step up in capability for missions that require greater range and coverage than the compact NSP-3 can provide.

For Group 4-5 UAS & Manned Aircraft

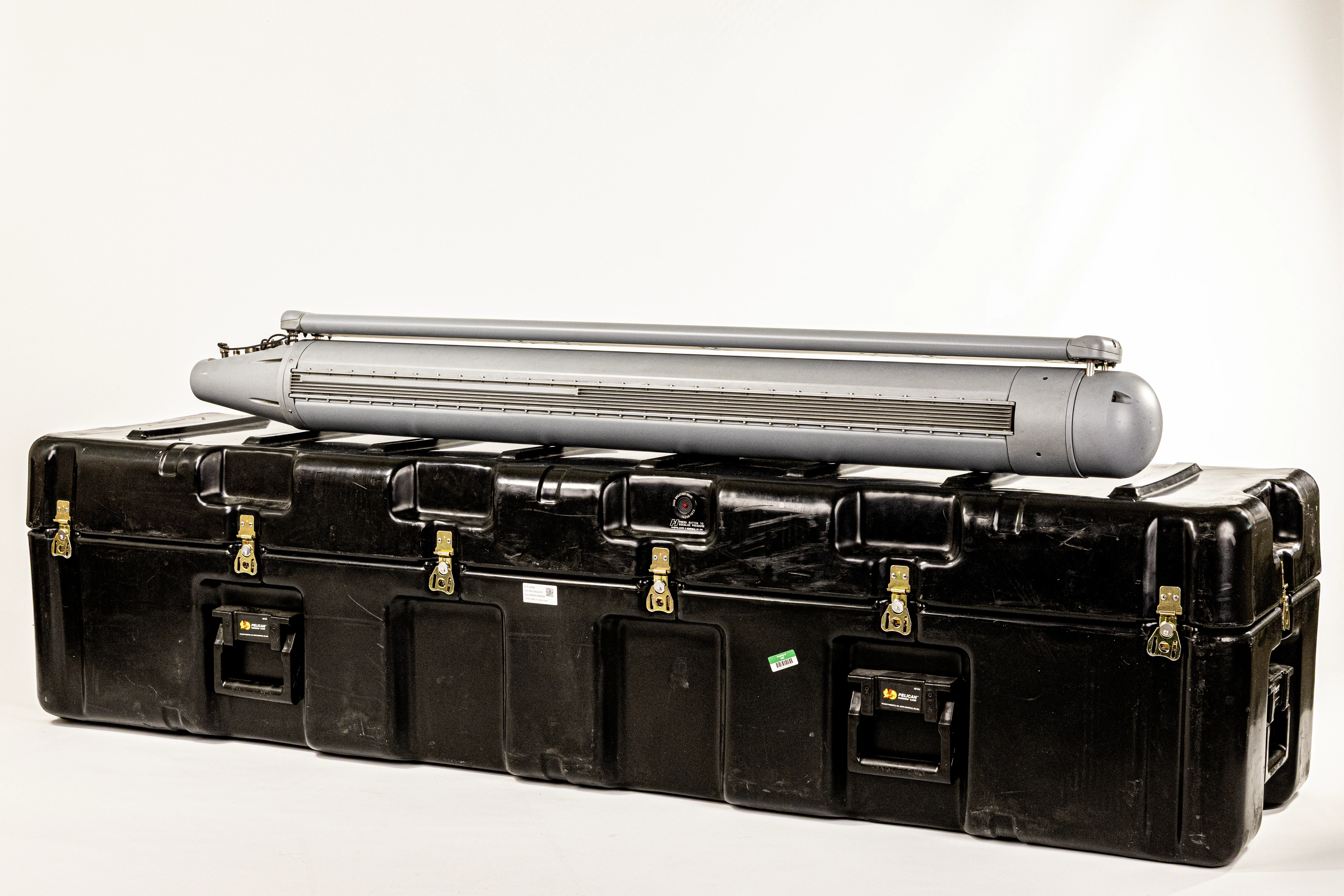

NSP-7

Engineered and weatherized for the rugged demands of manned aircraft and large UAS, the NSP-7 excels in austere operating conditions. It provides robust, long-range performance with improved Moving Target Indication (MTI) at standoff distances, ensuring persistent surveillance for border security and wide-area monitoring.

For Group 4-5 UAS & Manned Aircraft

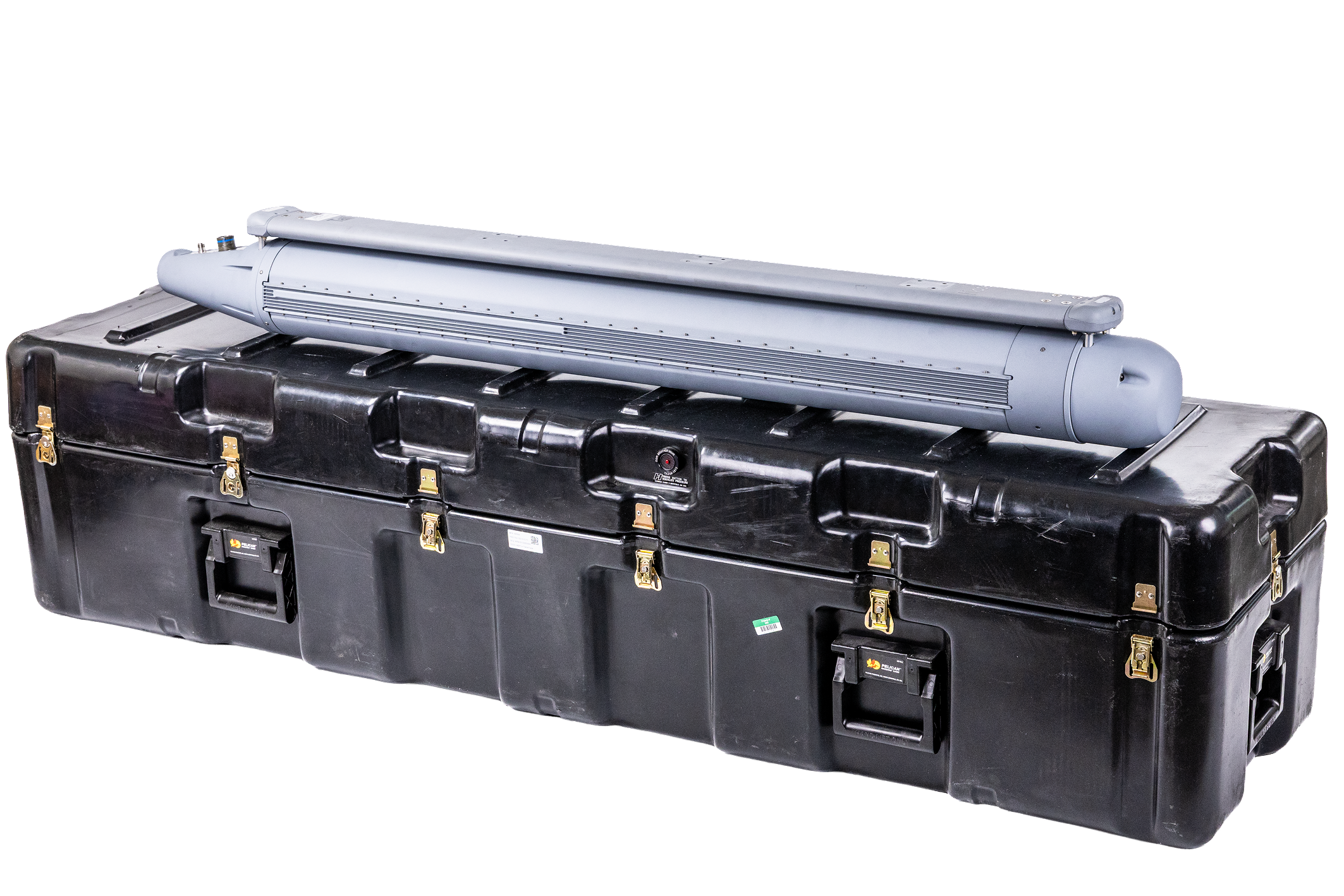

NSP-8

The NSP-8 represents the pinnacle of the NSP family's performance. Equipped with a high-precision IMU and high-power transmitter, it delivers the longest-range SAR imagining and most sensitive Dismount Moving Target Indication (DMTI) at maximum standoff ranges for strategic ISR.

our operating system

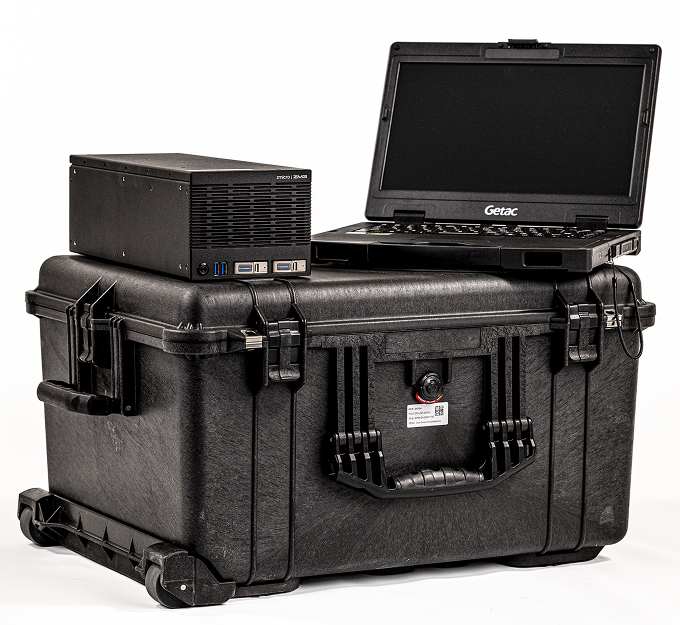

Processing Solutions

IMSAR's processing suite transforms raw radar data into actionable imagery and tracks, allowing operators to plan missions, control sensors, and interpret data at the speed of the mission.
