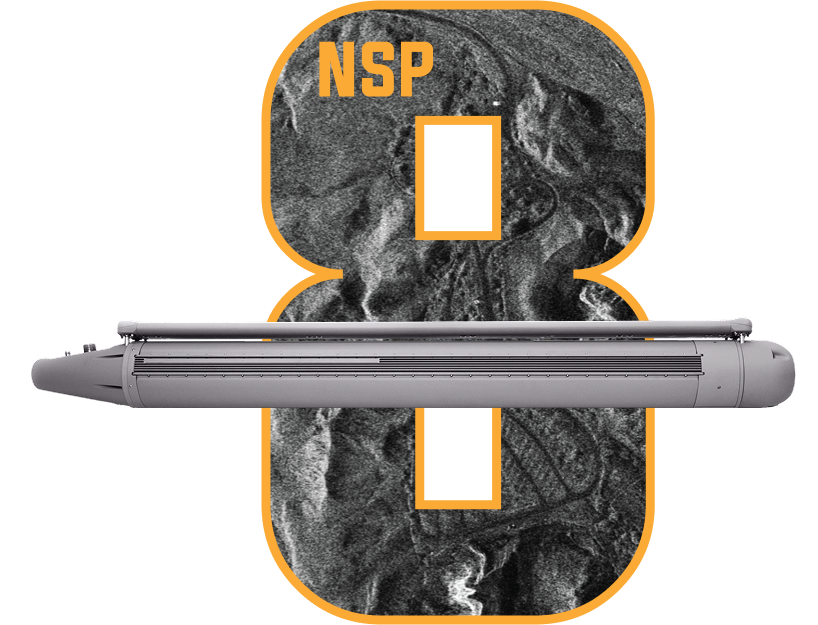

NSP-8

The NSP-8 is the premier solution for high-altitude strategic ISR. It combines a high-precision IMU with maximum system power to deliver deep-look SAR imaging and sensitive Dismount Moving Target Indication (DMTI) at extended standoff ranges.

DOWNLOAD DATASHEET

VIEW SPECS

Key Performance Specifications

SAR Imaging Resolutions

0.3 to 1 m

SAR Imaging Range

72 KM (at 1 m resolution)

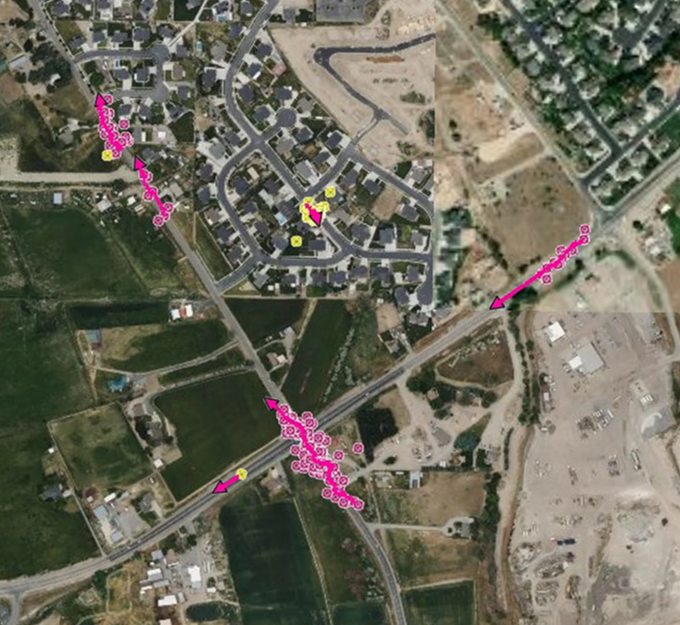

GMTI Vehicle Detection Range

39 KM

Maritime Detection and Geolocation (SAR)

225 NM (415 KM)

Maritime Detection and Tracking (MMTI)

159 NM (295 KM)

Maritime Classification (ISAR)

130 NM (240 KM)

Size, Weight and Power

Size

ModSAR Radar Electronics Assembly

2U MOD Payload

Antenna Assembly

Weight

25.8 LBS (11.7 KG)

Power

300 W CONFIGURABLE, 28 VDC

Size

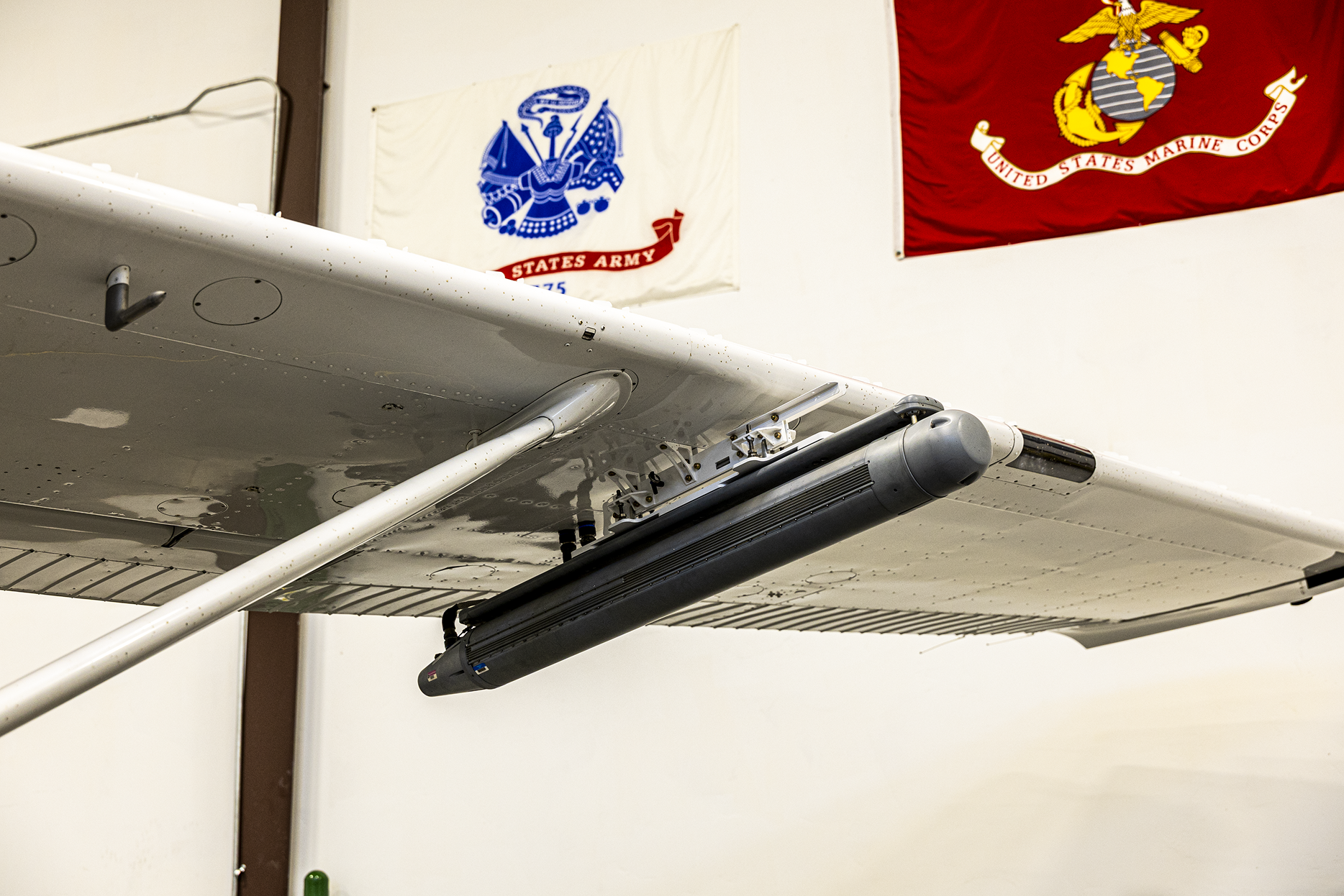

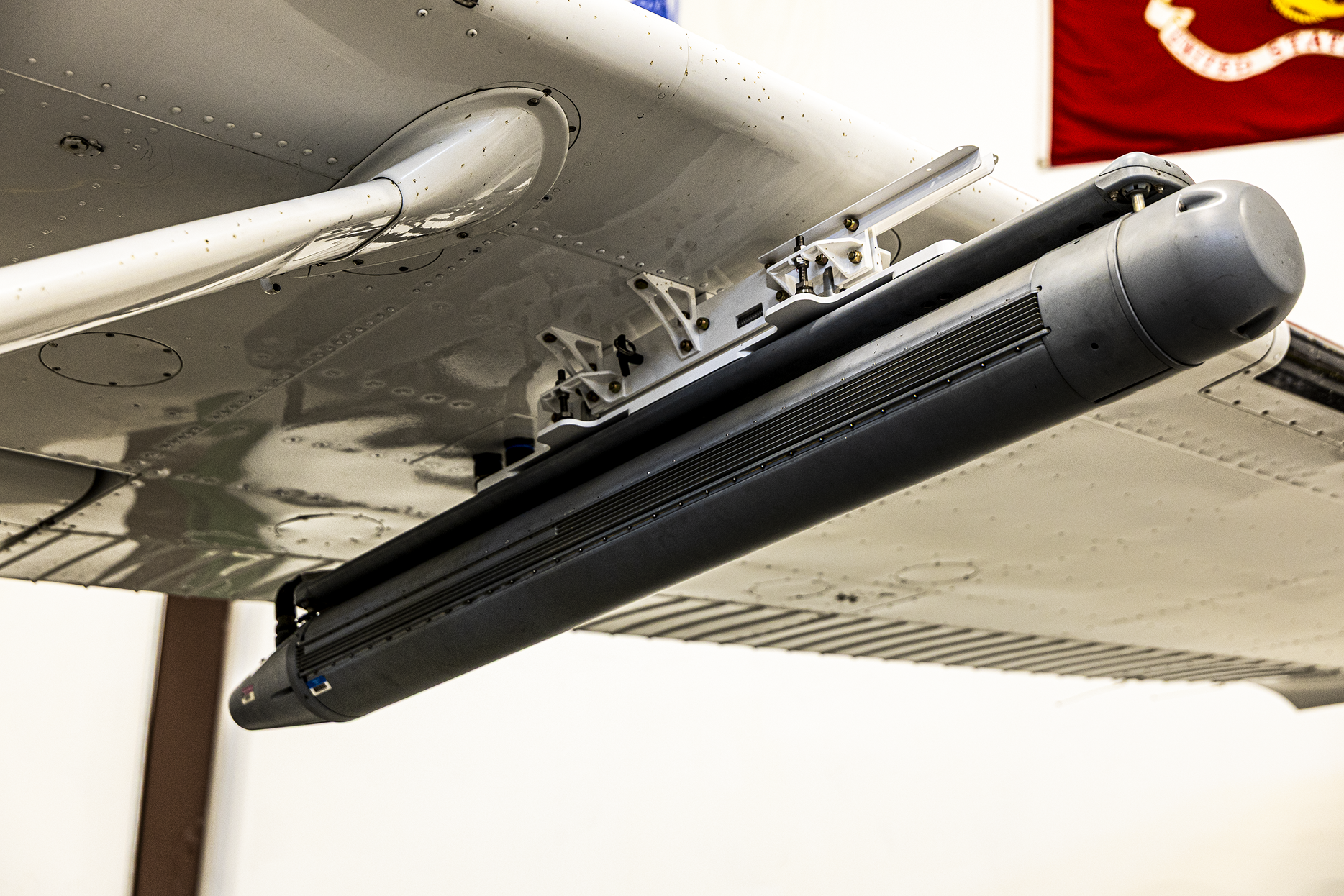

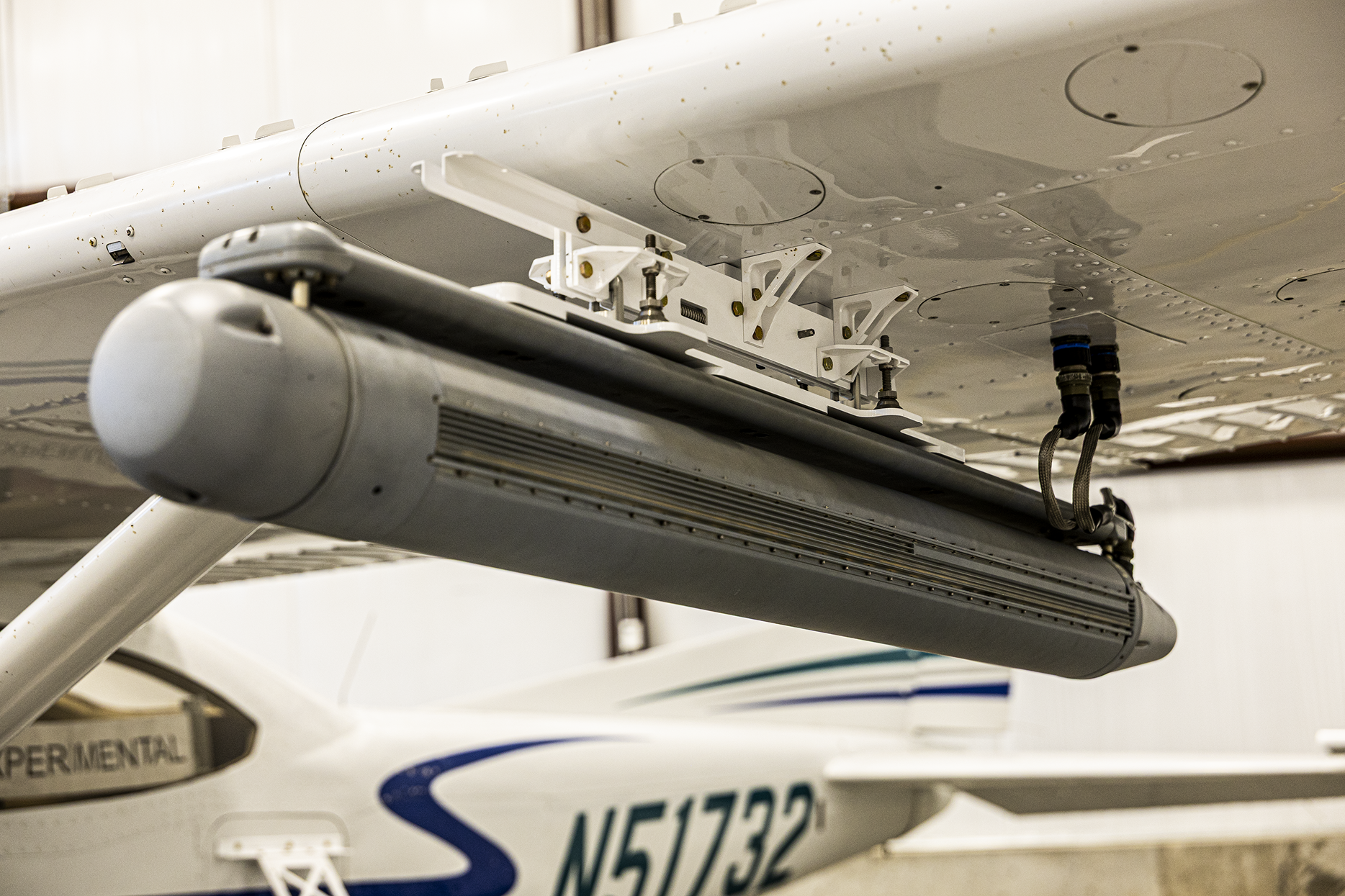

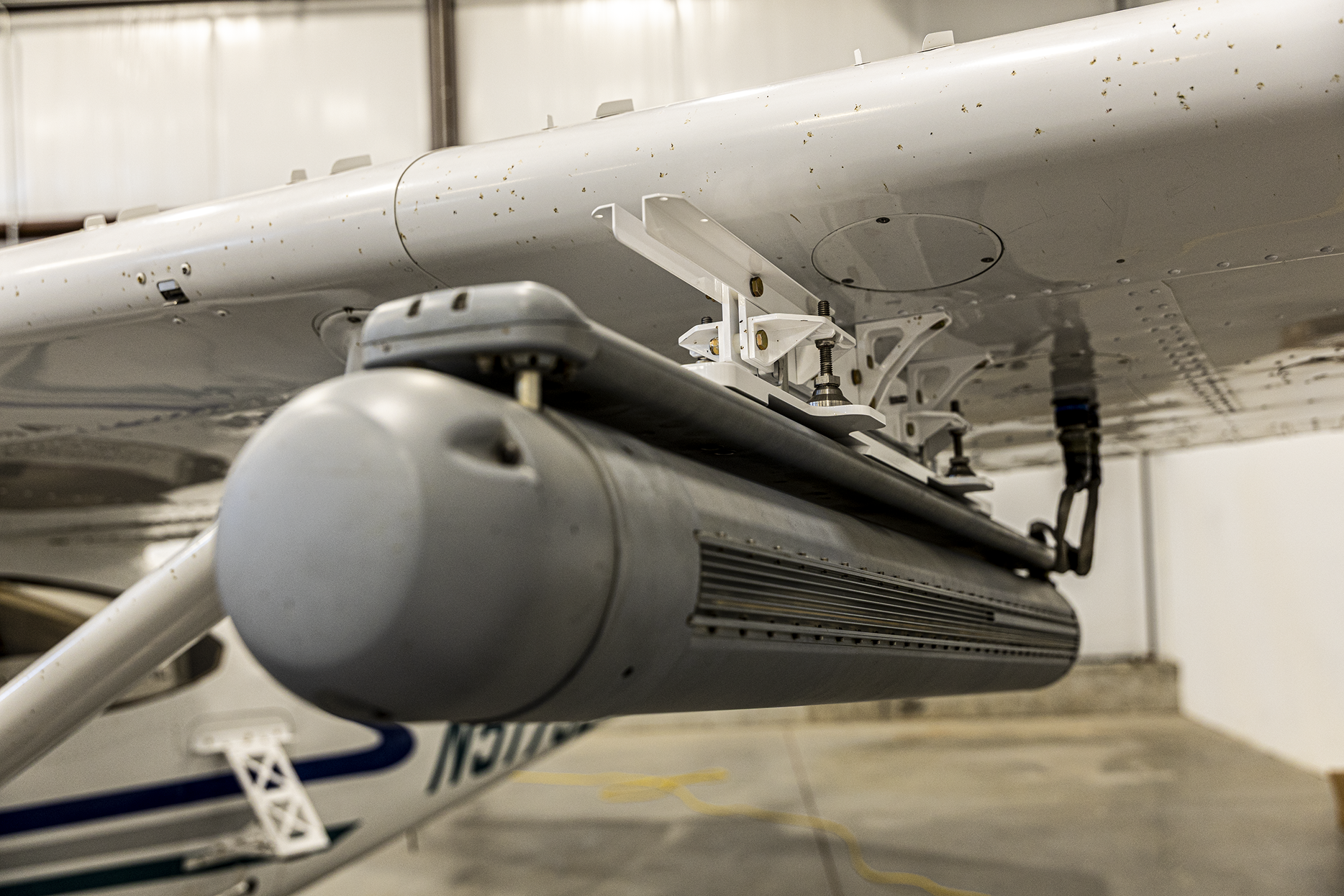

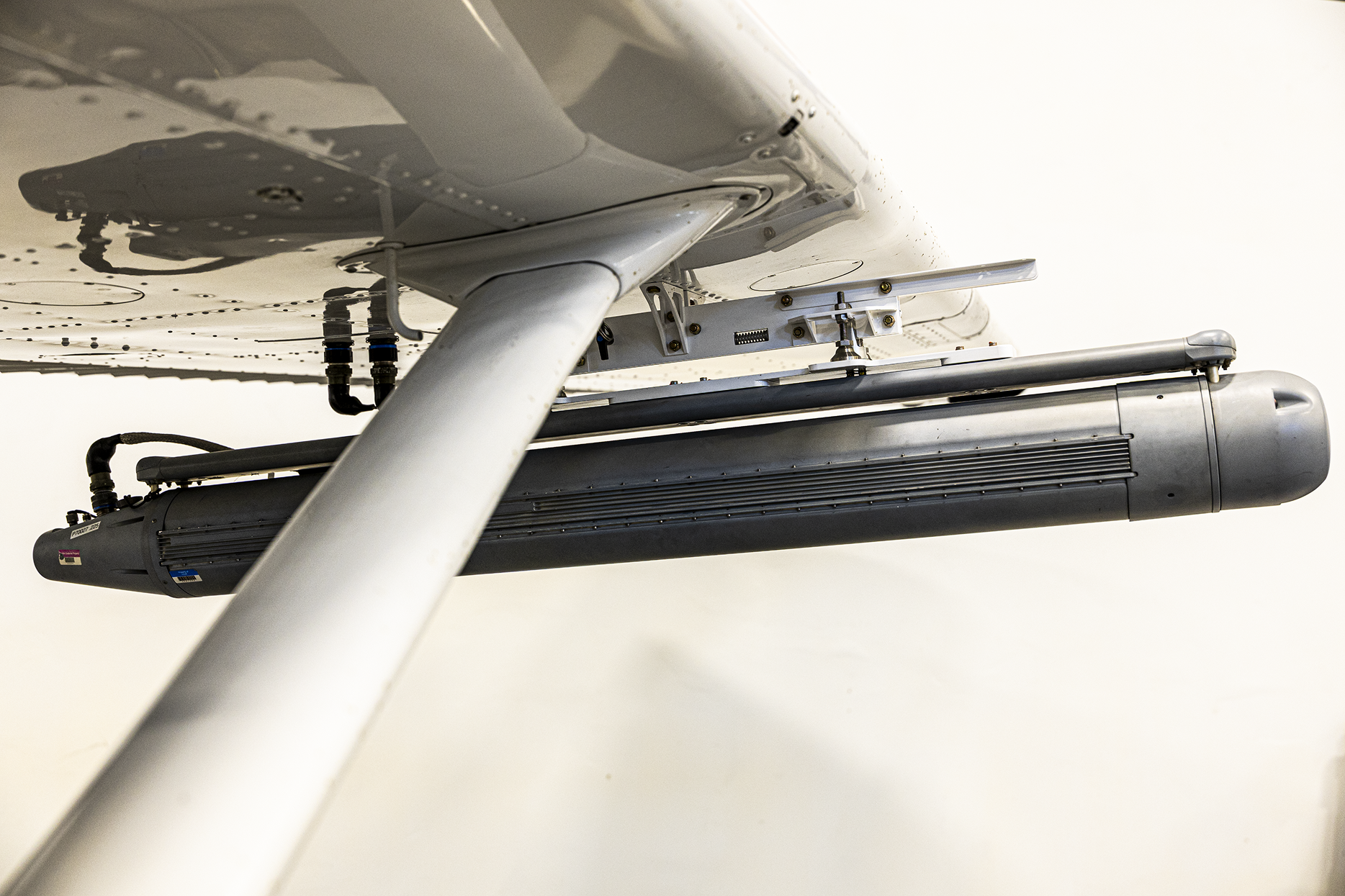

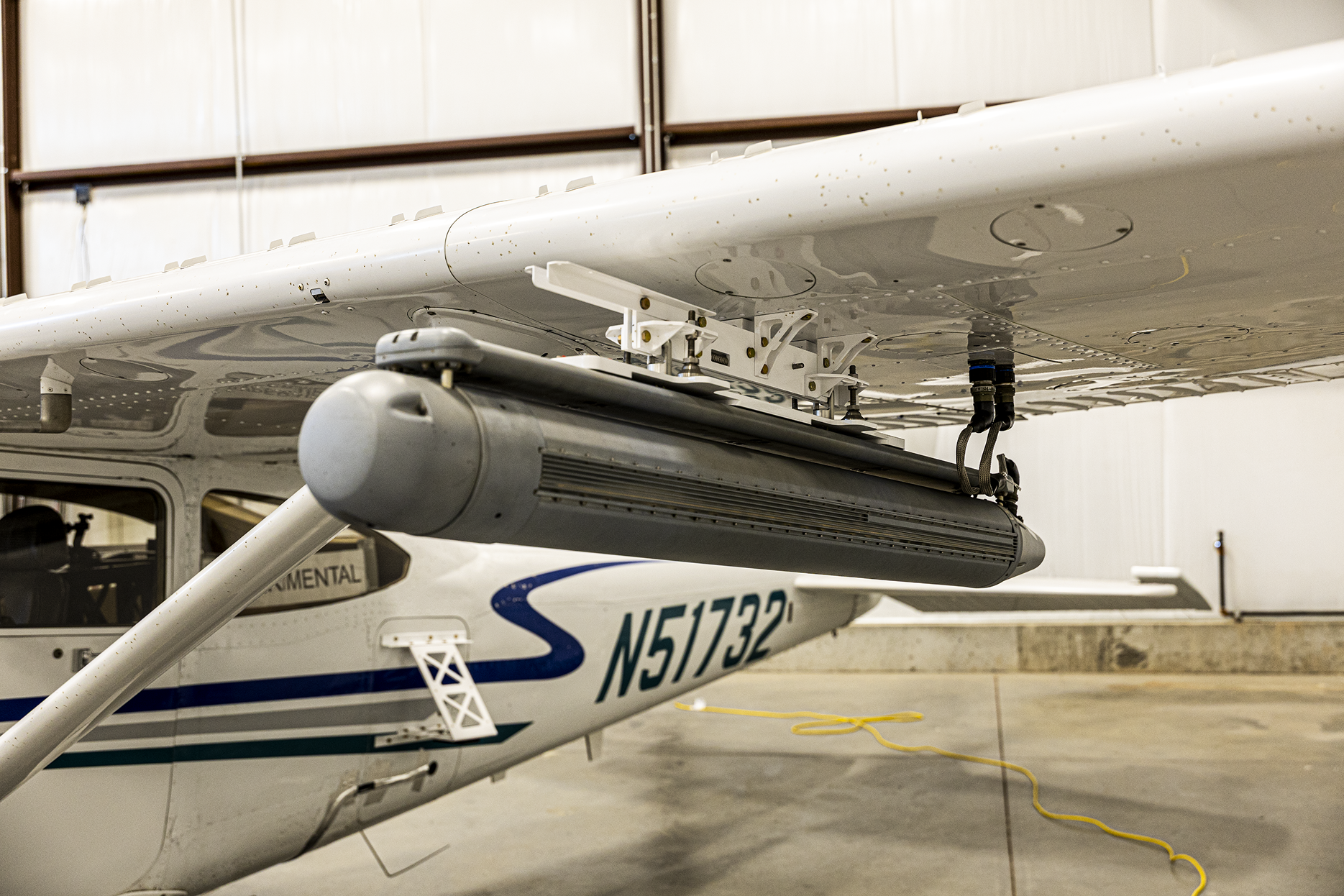

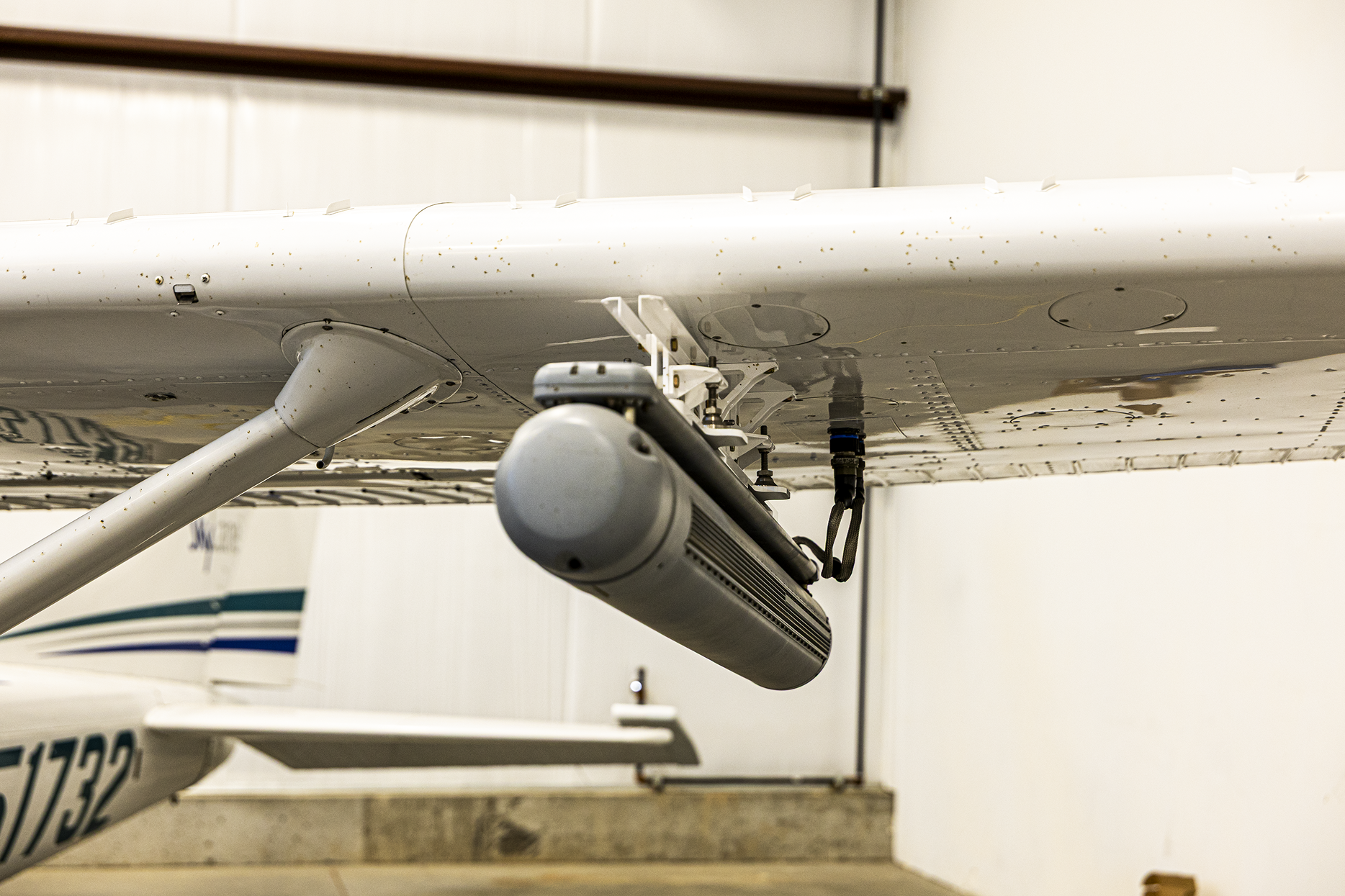

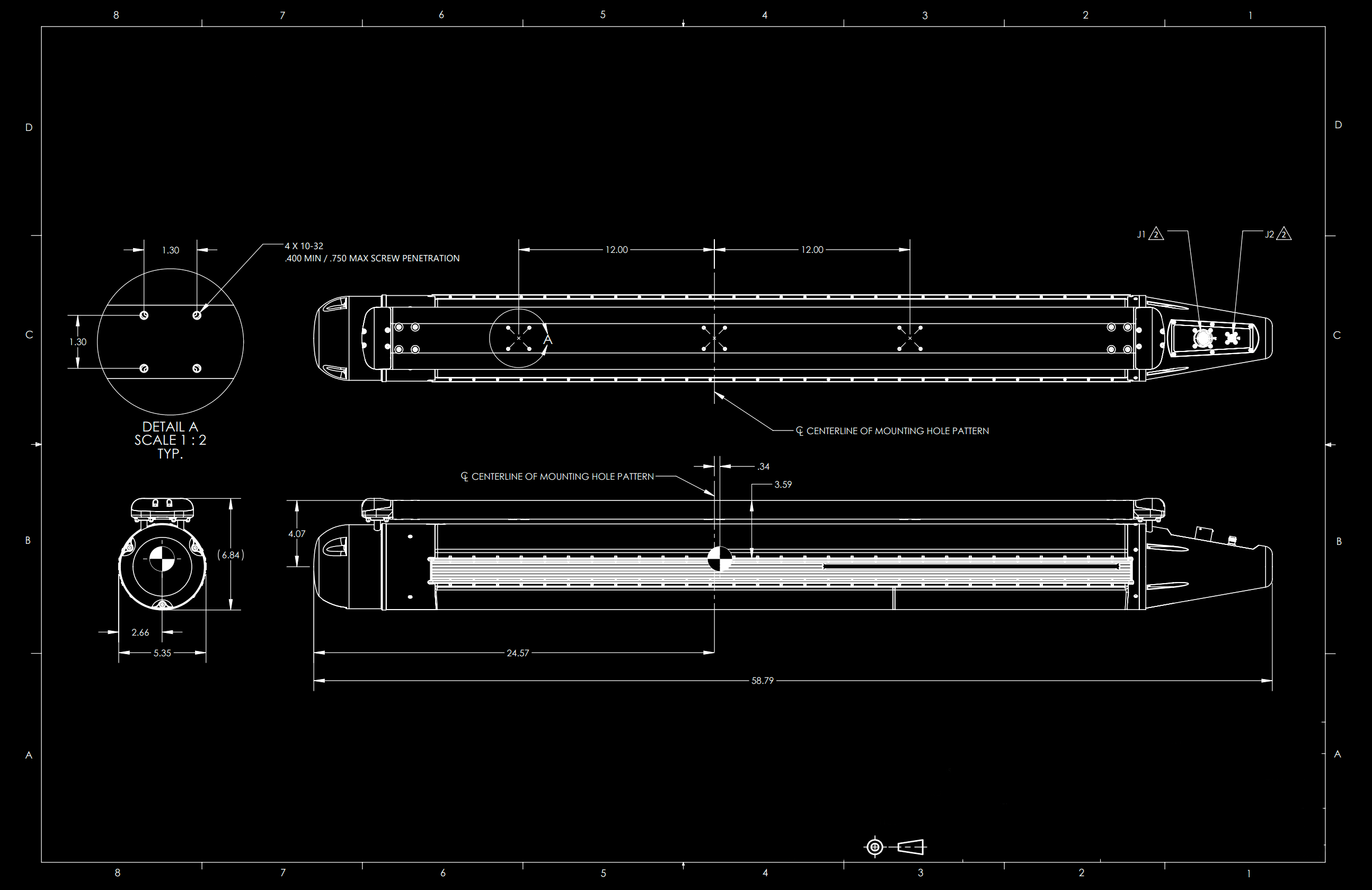

Standard Strongback Configuration

DIAMETER: 5.4 IN (13.7 CM)

LENGTH: 58.8 IN (149.4 CM)

HEIGHT: 6.8 IN (17.3 CM)

Weight

25.8 LBS (11.7 KG)

Power

300 W CONFIGURABLE, 28 VDC

Included Services & Support

IMSAR delivers a complete operational capability, not just hardware. The standard service package ensures successful installation, operator proficiency, and continuous system evolution through regular software enhancements.

Integration & Operational Support

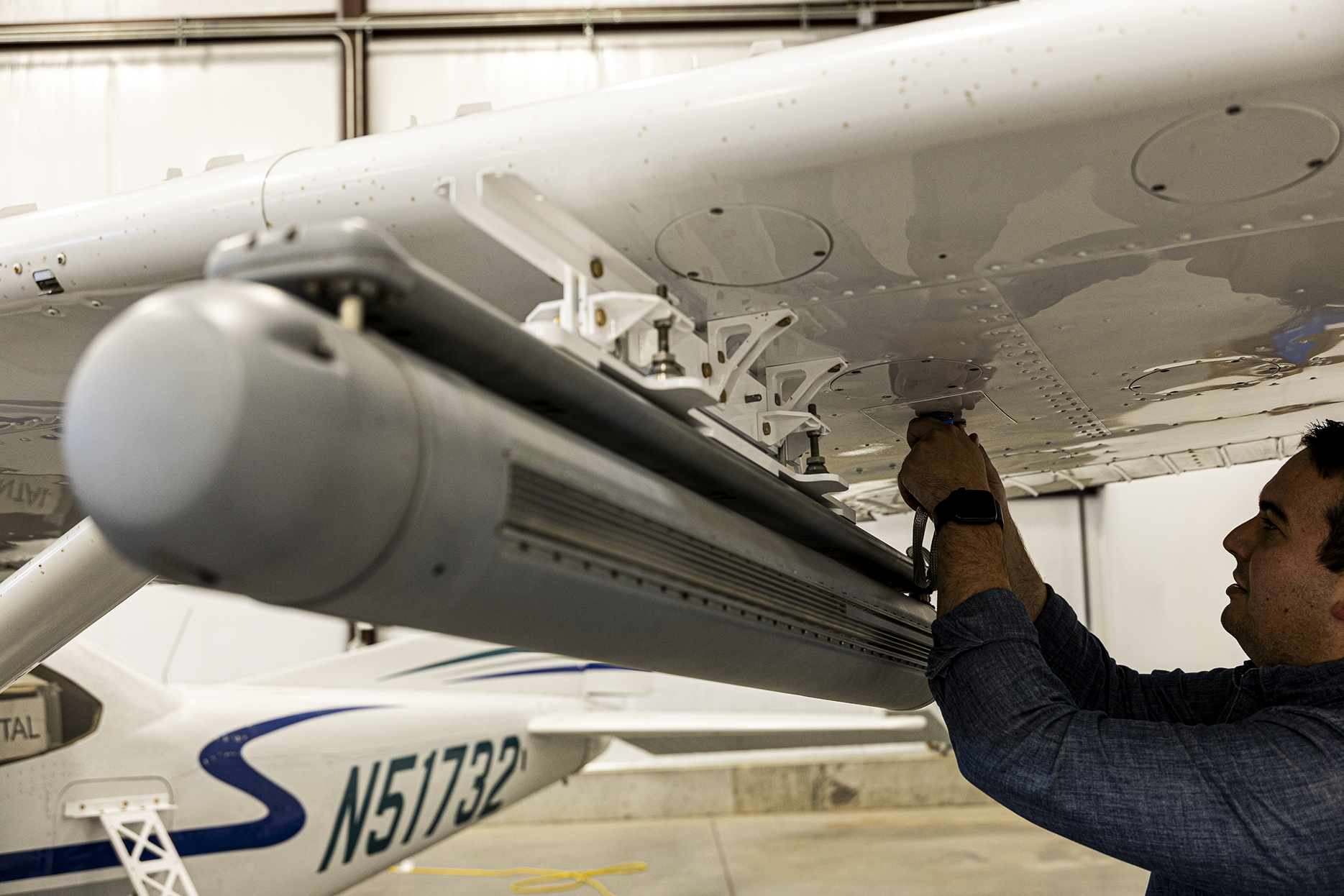

An IMSAR Field Operations Specialist (FOS) travels to the customer facility to verify physical installation and configure the system for the specific airframe. This support includes ground testing, frequency approval assistance, and operational oversight during initial shakedown flights to ensure the radar is integrated correctly and mission-ready.

Training & Technical Support

The purchase of a radar includes a comprehensive 4-day training course covering system operation and data analysis. Following certification, operators retain direct access to IMSAR’s technical support team via phone, video, or email for assistance with system familiarization and troubleshooting.

Warranty & Software Updates

The system includes a standard one-year hardware warranty and a one-year software support plan. This plan delivers regular updates that provide capability enhancements, new radar modes, and critical security patches, ensuring that the system evolves to meet emerging threats during the initial operational period.
