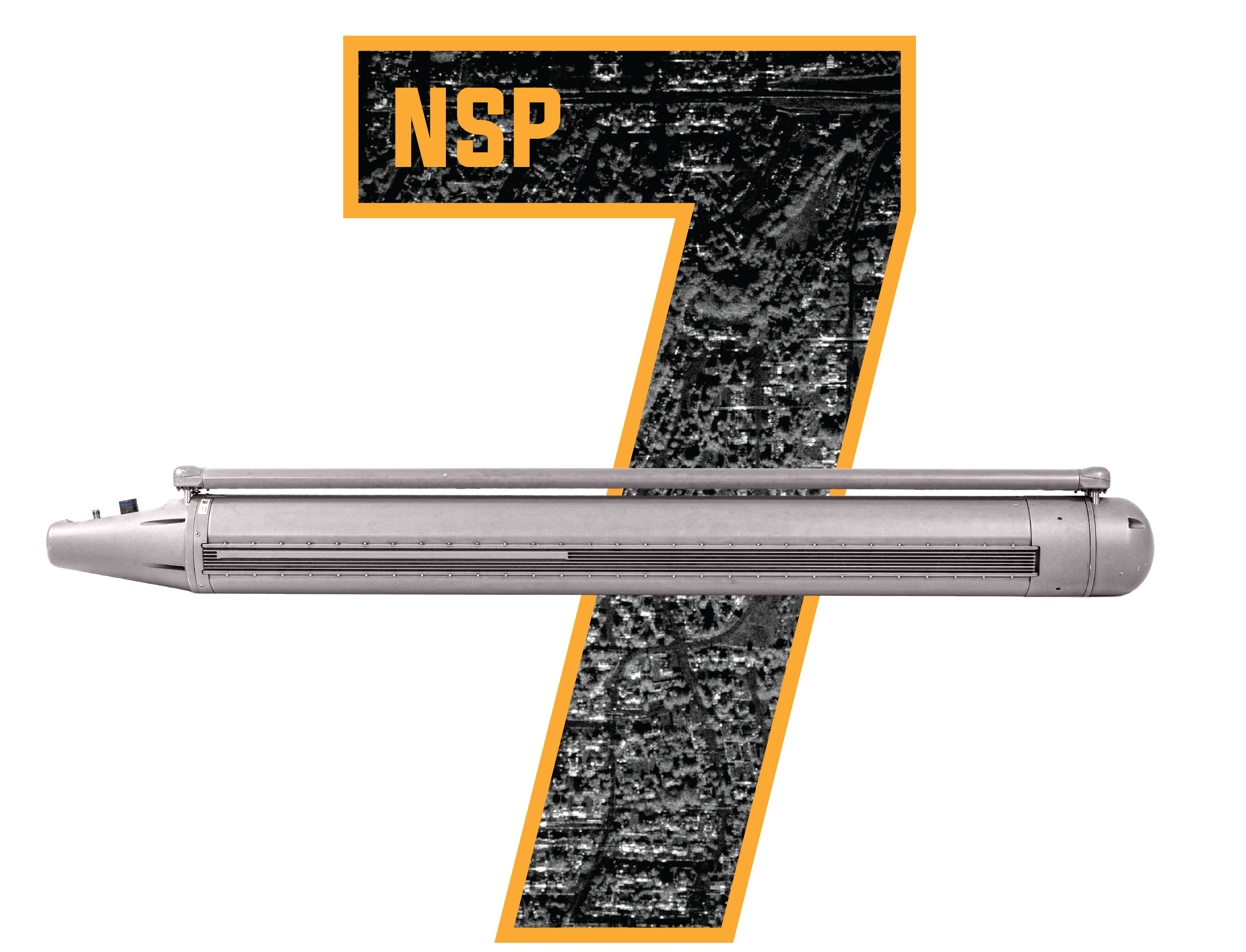

NSP-7

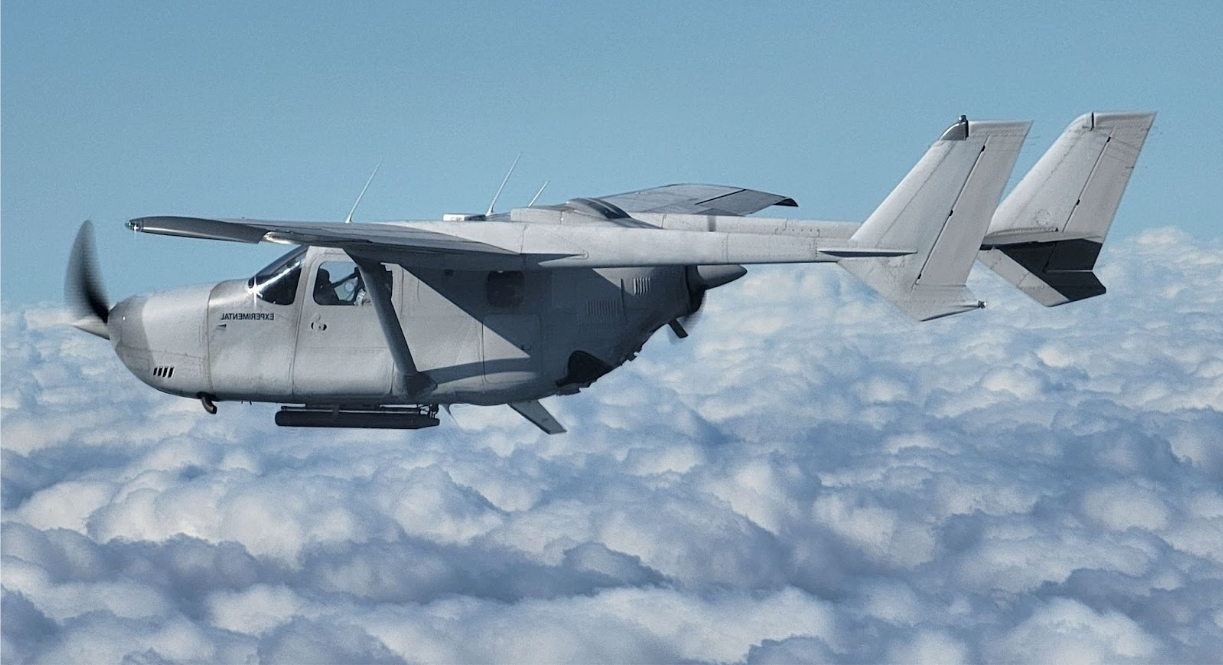

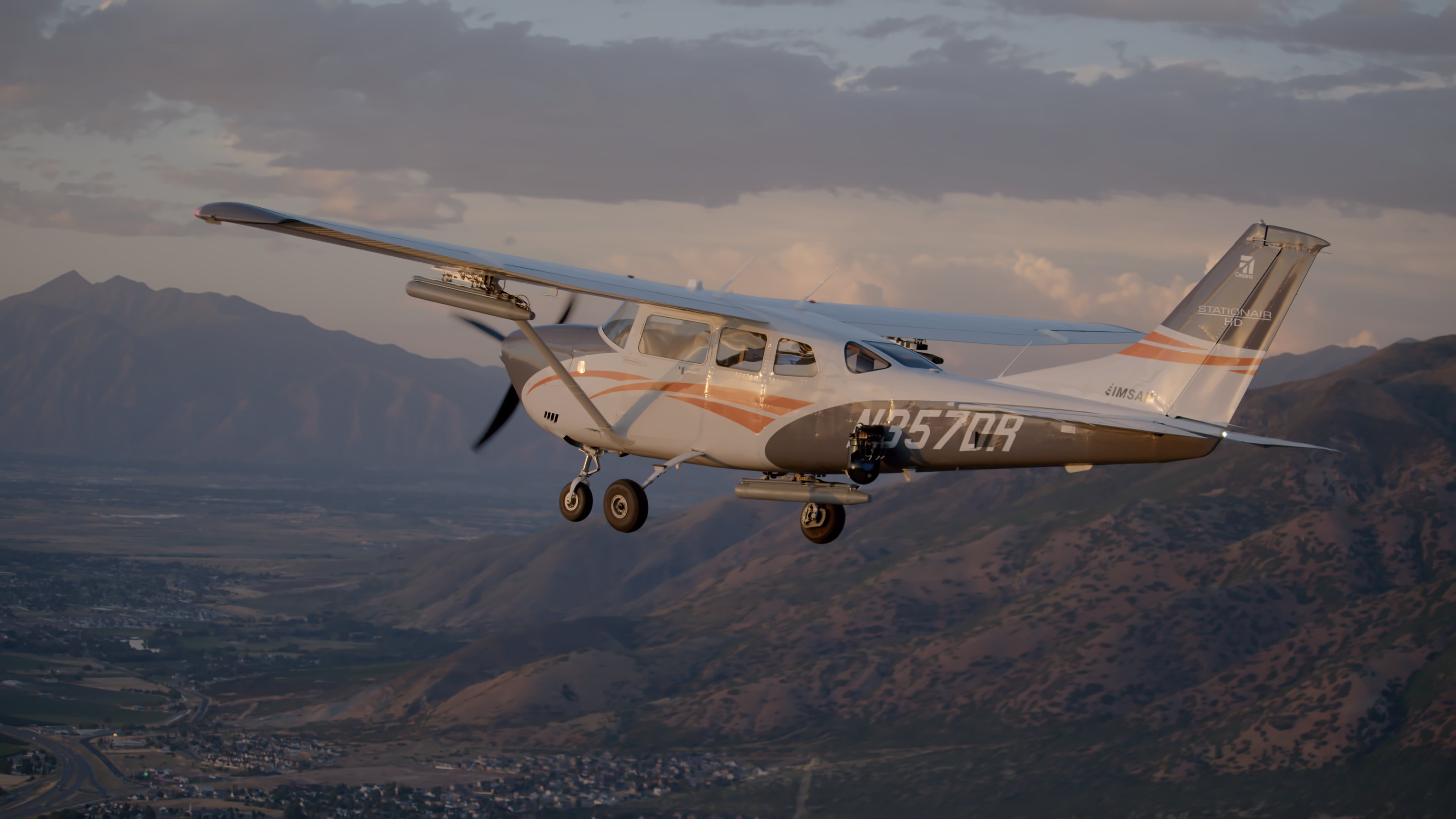

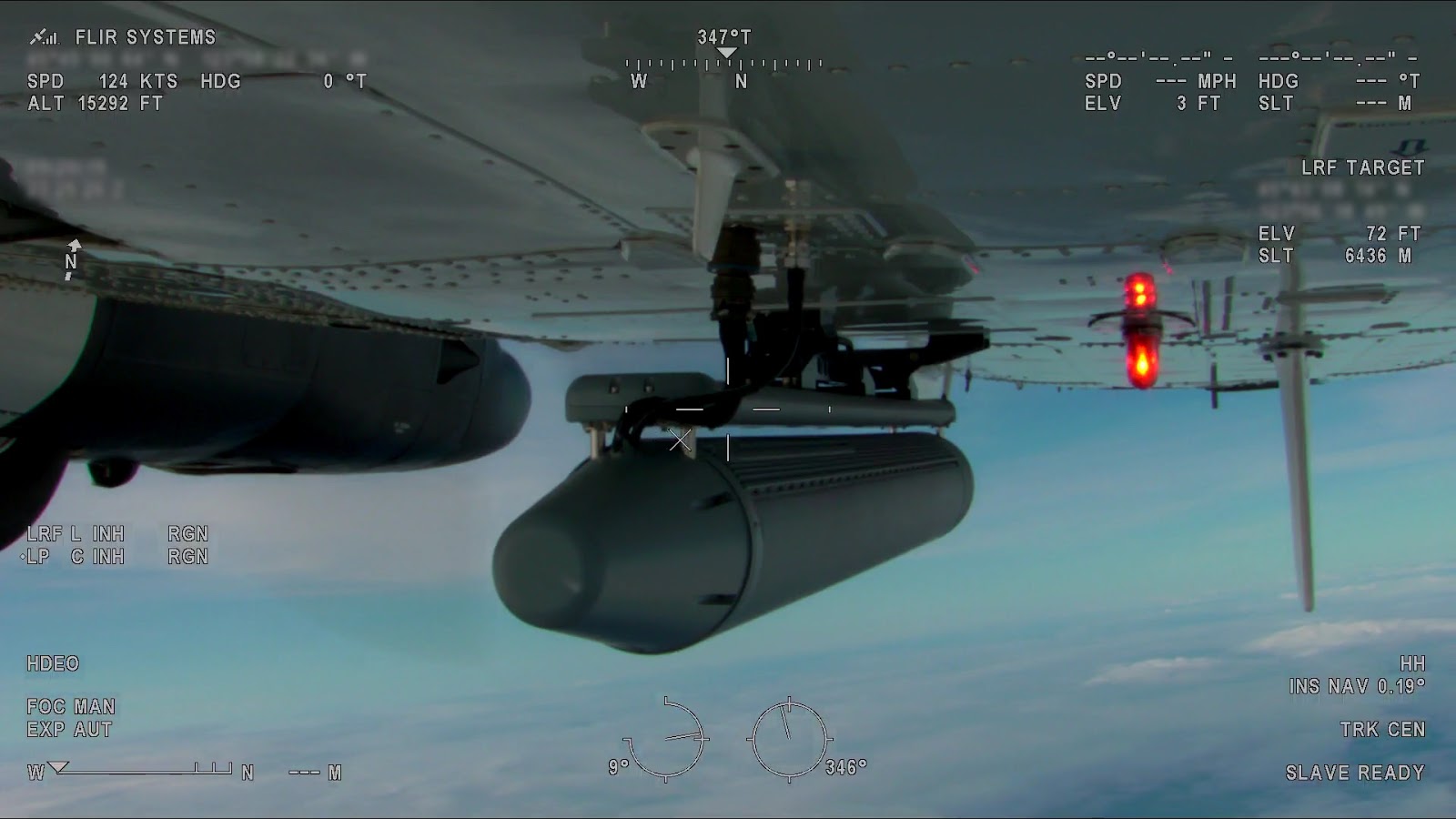

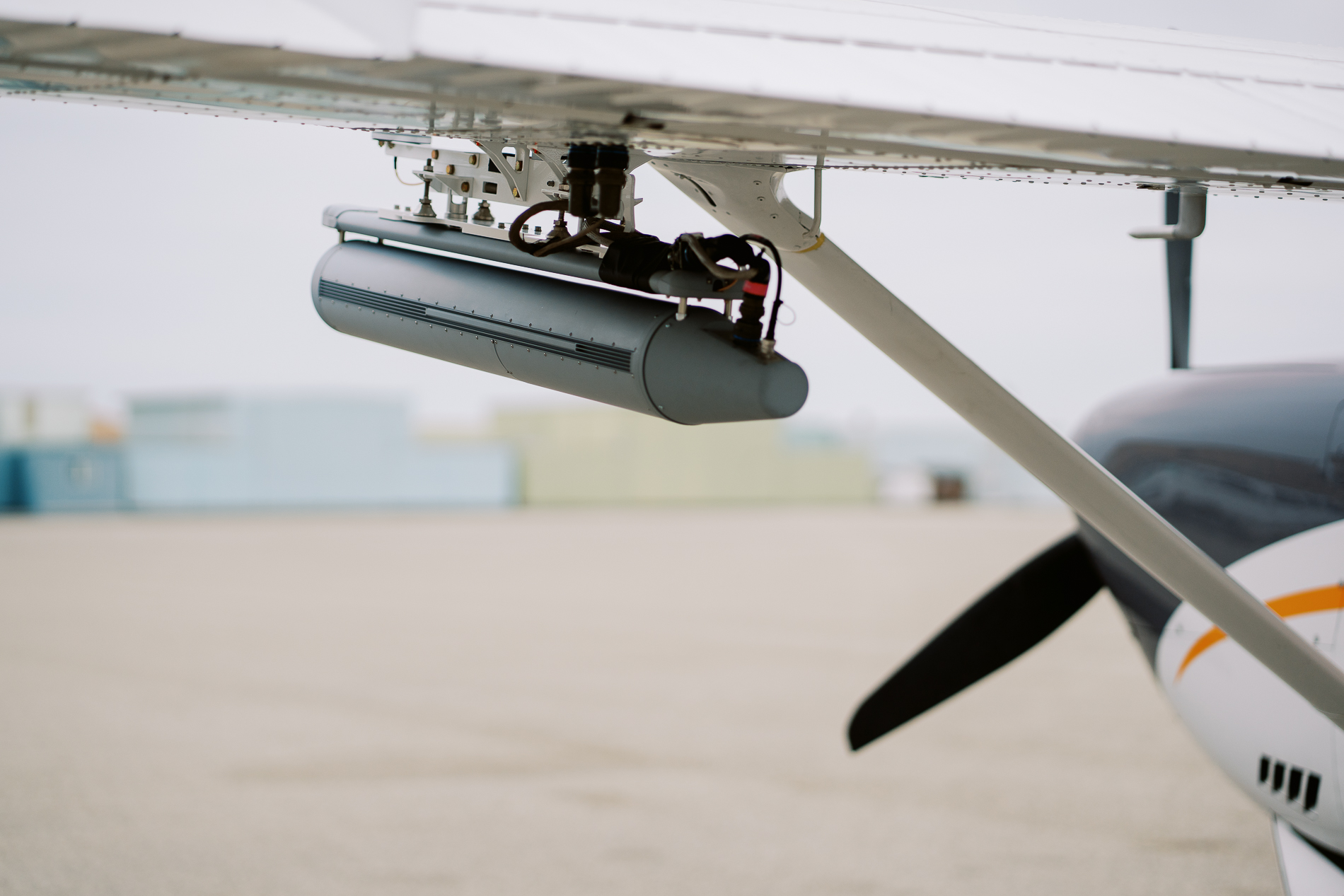

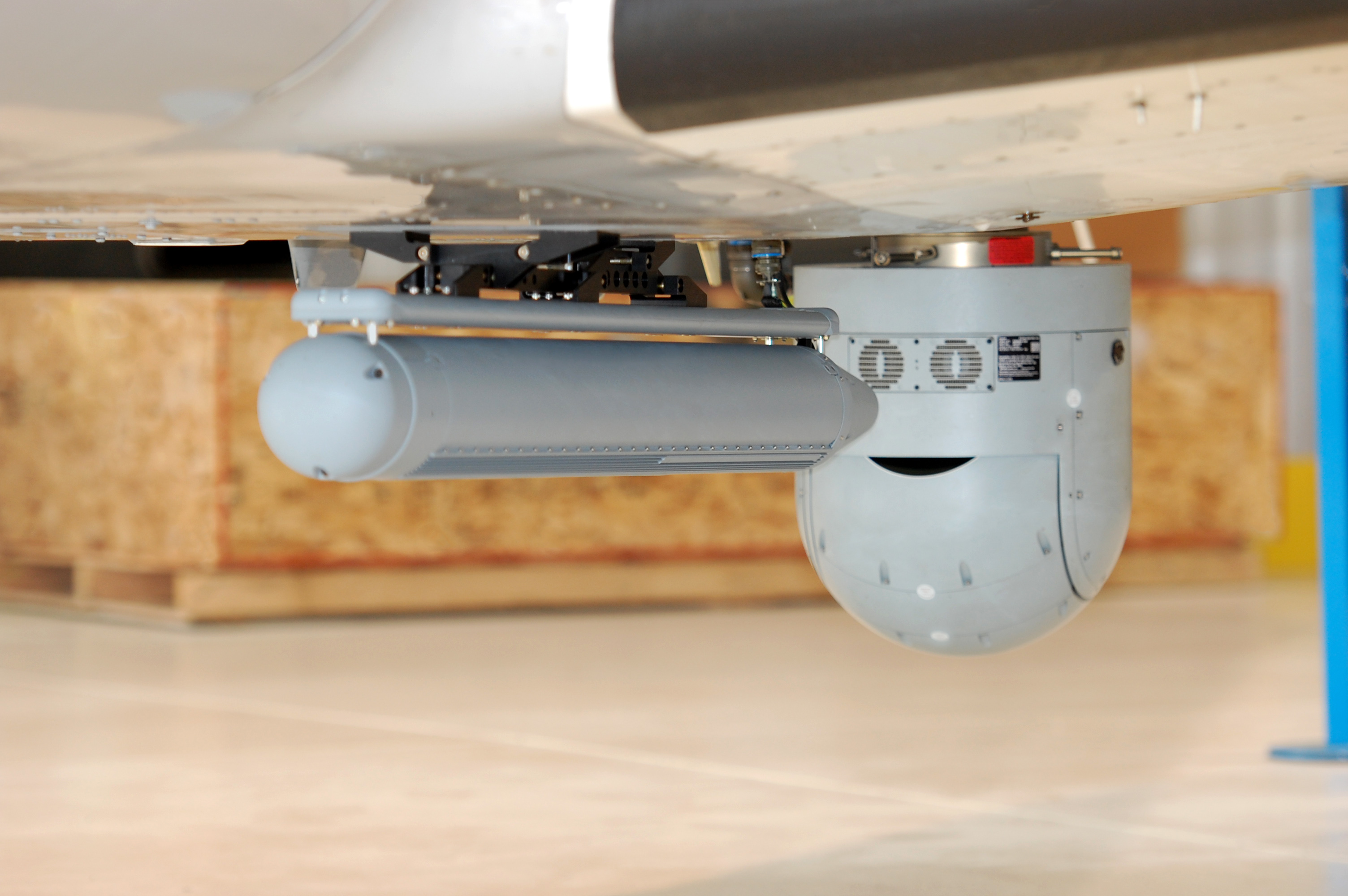

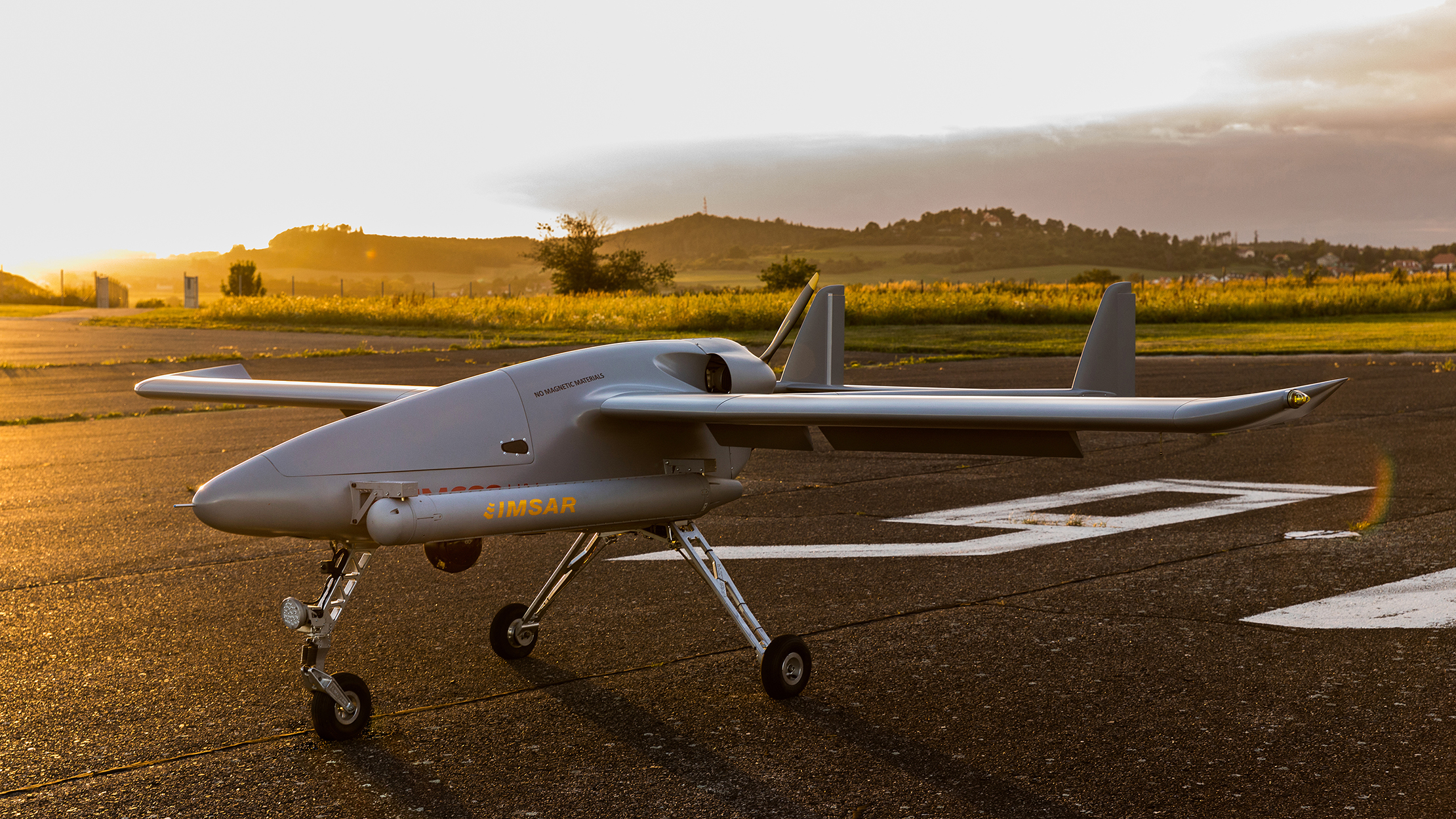

Engineered and weatherized for the rugged demands of manned aircraft and large UAS, the NSP-7 excels in austere operating conditions. It provides robust, long-range performance with improved Moving Target Indication (MTI) at standoff distances.

DOWNLOAD DATASHEET

VIEW SPECS

Key Performance Specifications

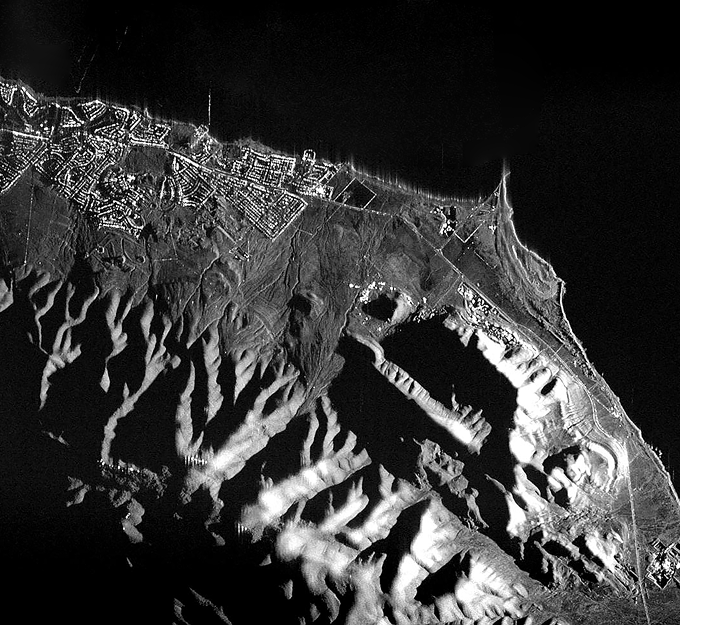

SAR Imaging Resolutions

0.1 to 10 m

SAR Imaging Range

44 KM (at 1 m resolution)

GMTI Vehicle Detection Range

24 KM

Maritime Detection and Geolocation (SAR)

172 NM (319 KM)

Maritime Detection and Tracking (MMTI)

134 NM (248 KM)

Maritime Classification (ISAR)

117 NM (217 KM)

Size, Weight and Power

Size

ModSAR Radar Electronics Assembly

2U MOD Payload

Antenna Assembly

Weight

24 LBS (10.9 KG)

Power

190 W, 28 VDC

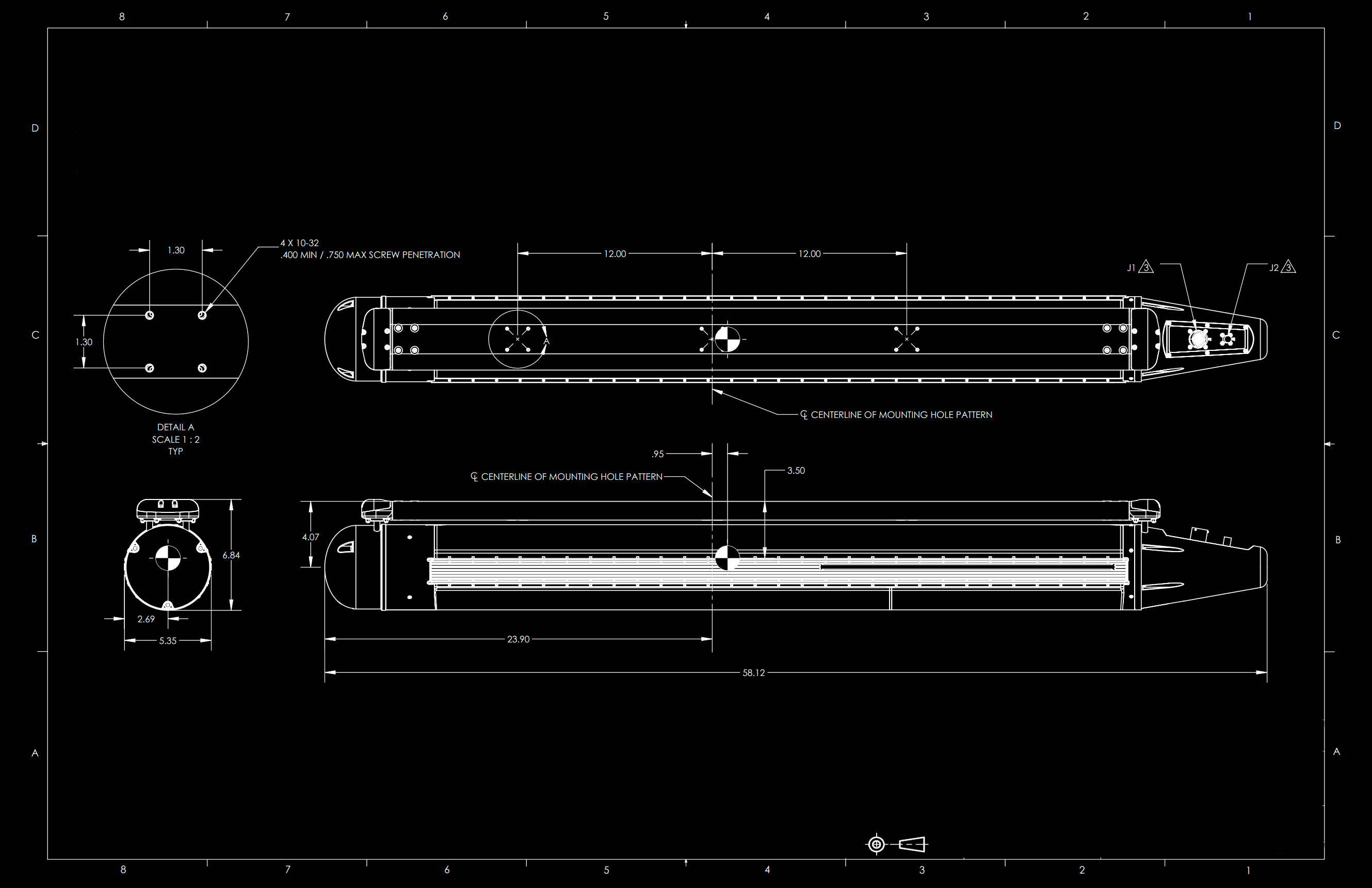

Size

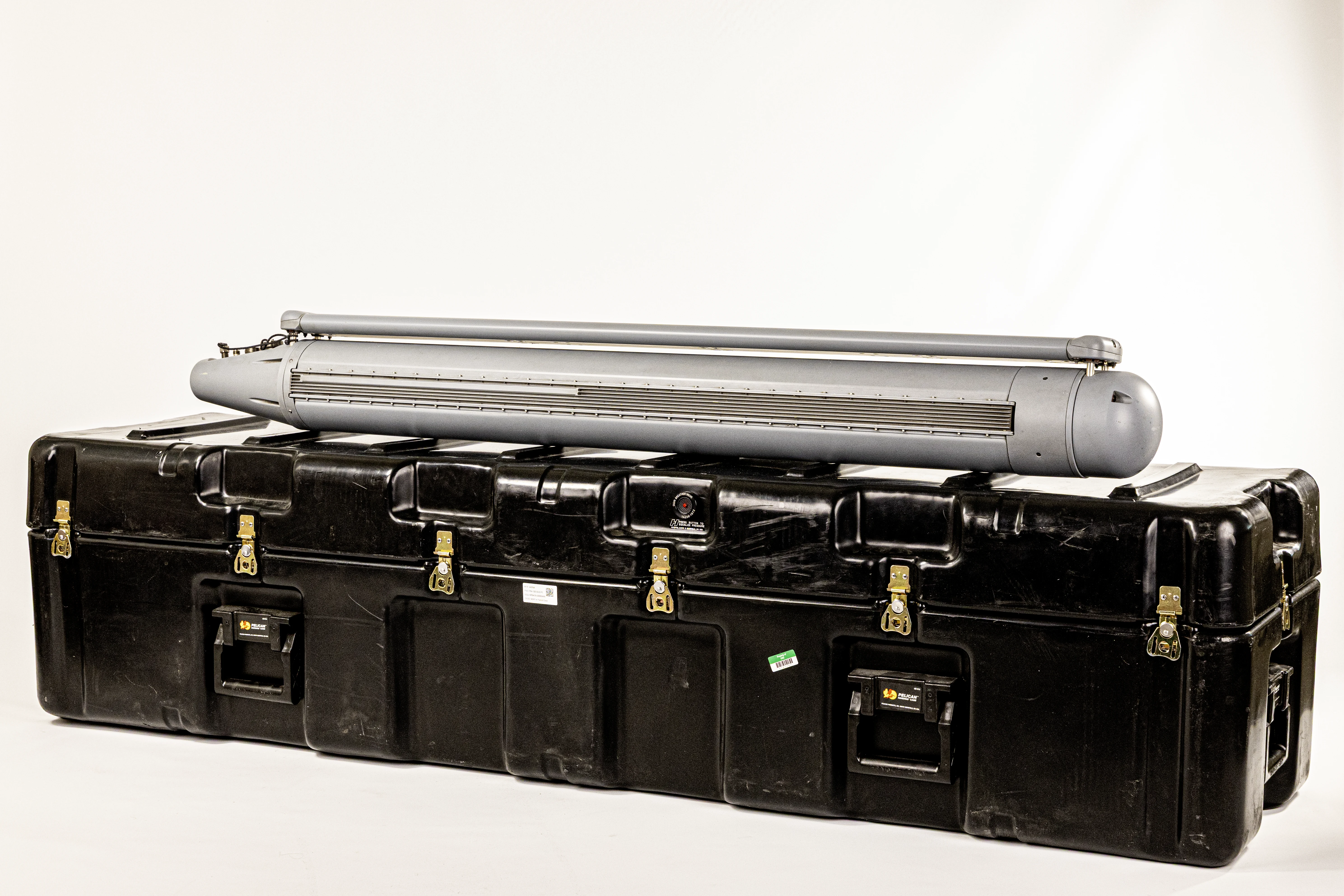

Standard Strongback Configuration

DIAMETER: 5.4 IN (13.7 CM)

LENGTH: 58.1 IN (147.6 CM)

HEIGHT: 6.8 IN (17.3 CM)

Weight

24 LBS (10.9 KG)

Power

190 W, 28 VDC

Included Services & Support

IMSAR delivers a complete operational capability, not just hardware. The standard service package ensures successful installation, operator proficiency, and continuous system evolution through regular software enhancements.

Integration & Operational Support

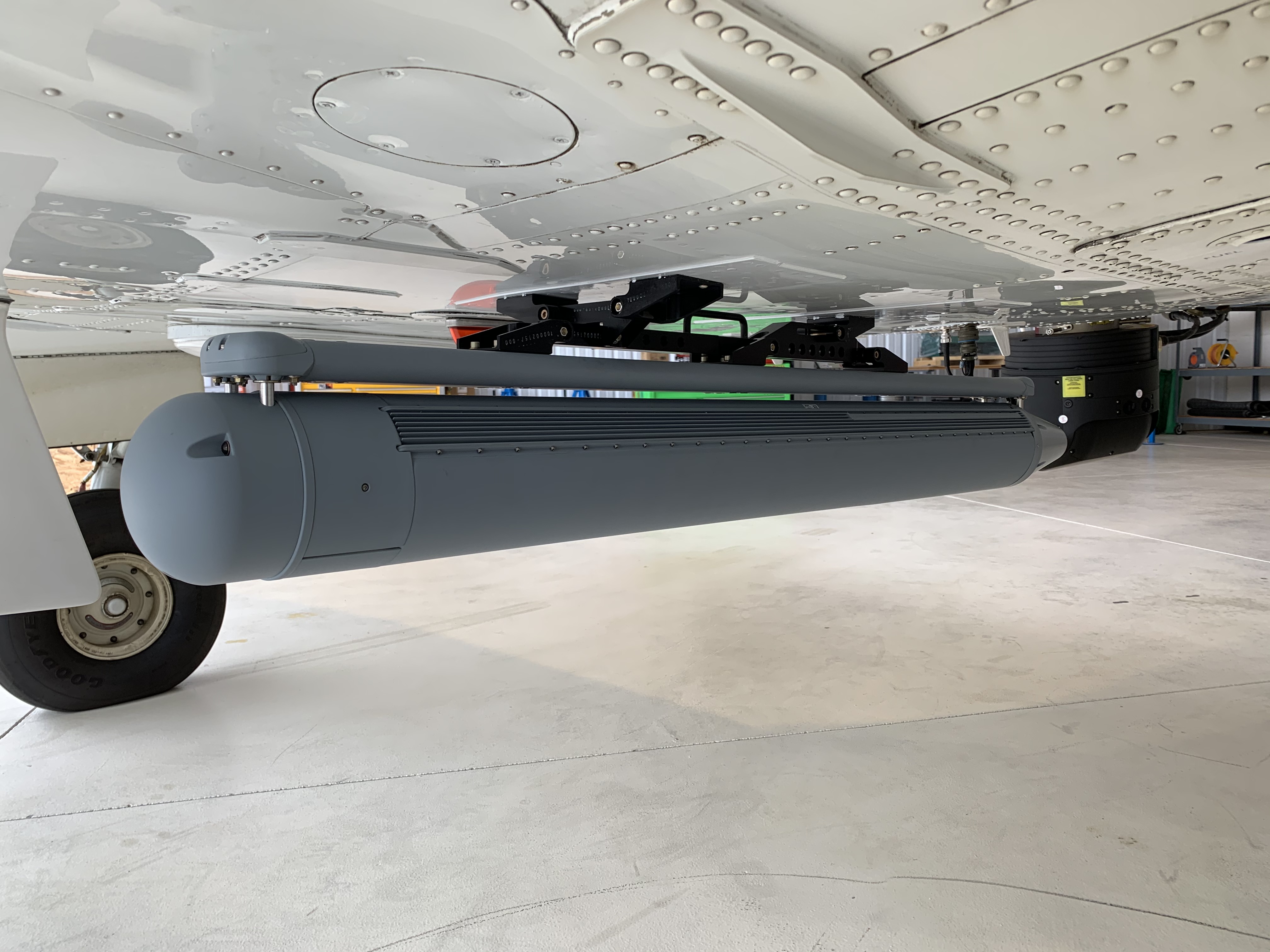

An IMSAR Field Operations Specialist (FOS) travels to the customer facility to verify physical installation and configure the system for the specific airframe. This support includes ground testing, frequency approval assistance, and operational oversight during initial shakedown flights to ensure the radar is integrated correctly and mission-ready.

Training & Technical Support

The purchase of a radar includes a comprehensive 4-day training course covering system operation and data analysis. Following certification, operators retain direct access to IMSAR’s technical support team via phone, video, or email for assistance with system familiarization and troubleshooting.

Warranty & Software Updates

The system includes a standard one-year hardware warranty and a one-year software support plan. This plan delivers regular updates that provide capability enhancements, new radar modes, and critical security patches, ensuring that the system evolves to meet emerging threats during the initial operational period.
