Lisa 3D provides full command and control over the radar system. Operators can build automated collection plans, dynamically switch modes between SAR and MTI during the mission, and visualize the resulting imagery and tracks generated by the processing server in real-time.
Lisa 3D integrates into the broader tactical network using Cursor on Target (CoT) to share real-time locations and tracks with other users. For post-mission analysis, operators can export specific views and data layers, streamlining the creation of intelligence reports.
Lisa 3D facilitates the "Iron Triad" (Radar, Optical, and Signals) within a single Common Operating Picture. Operators can directly control popular EO/IR cameras to automatically cross-cue sensors to radar or AIS detections—essential for identifying "dark" vessels. Using CoT messages, Lisa 3D enables cross-cues with other EW/SIGINT sensors, ensuring a fully integrated tactical picture.
Designed for hardware independence, Lisa 3D can be deployed on IMSAR’s ruggedized mission computers or installed directly onto customer-provided workstations, integrating seamlessly with existing ground control stations or airborne consoles.
IMSAR servers are high-performance computing nodes that transform raw radar data into finalized intelligence products in real time. IMSAR servers are optimized to serve data directly to Lisa 3D™, and they support the broader intelligence community by generating data in industry-standard formats—including KML/PNG, NITF, STANAG 4607, and STANAG 4676. This ensures seamless integration into existing mission management software, GIS platforms, and third-party exploitation tools.
.png)

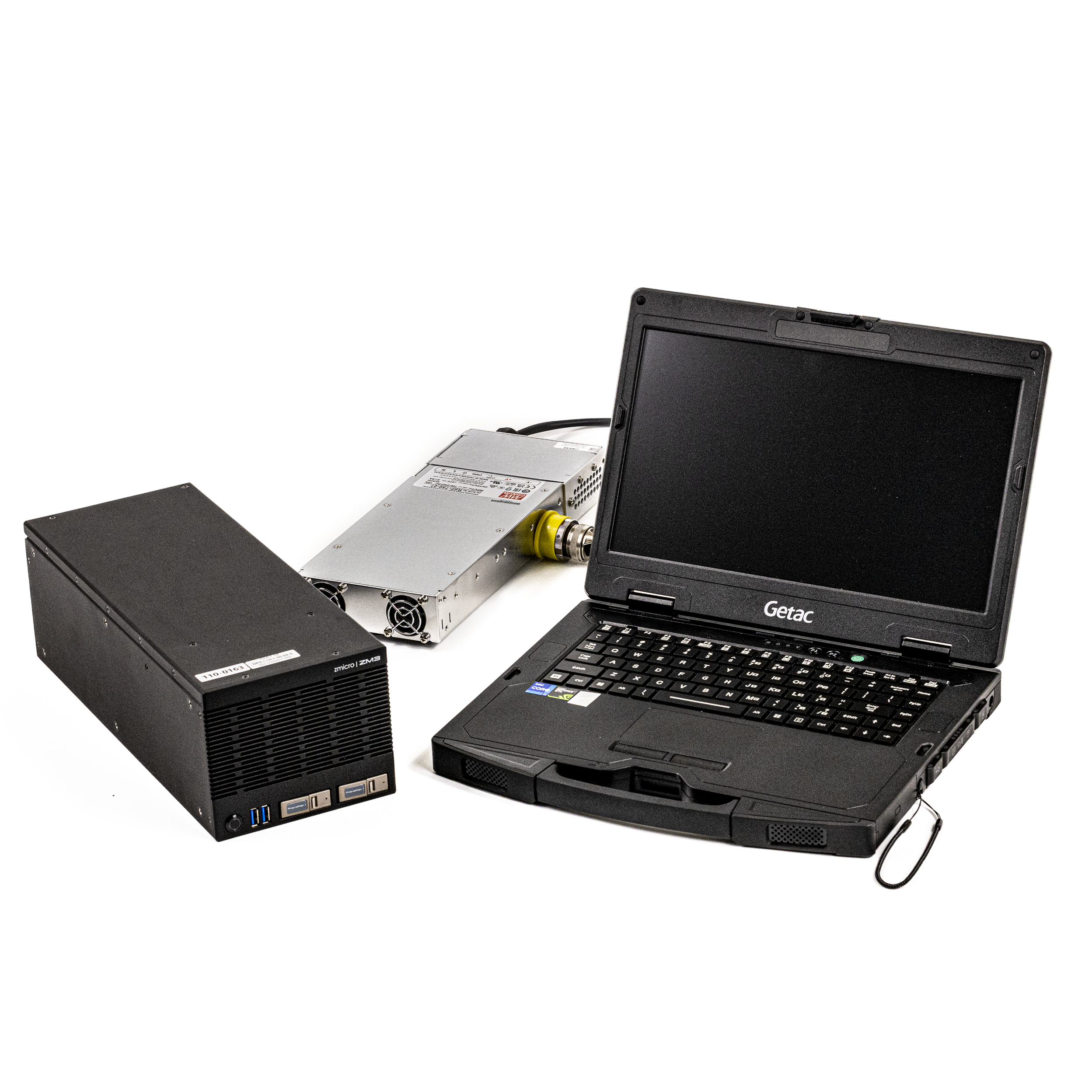

The LGE is a self-contained, rapid-deployment solution for UAS teams operating via datalink. Housed in a ruggedized transit case, the kit includes a high-performance processing server to handle incoming raw radar data, a rugged laptop for exploitation, and all necessary peripherals and AC/DC power supplies. It is the ideal "out-of-the-box" solution for tactical UAS units.

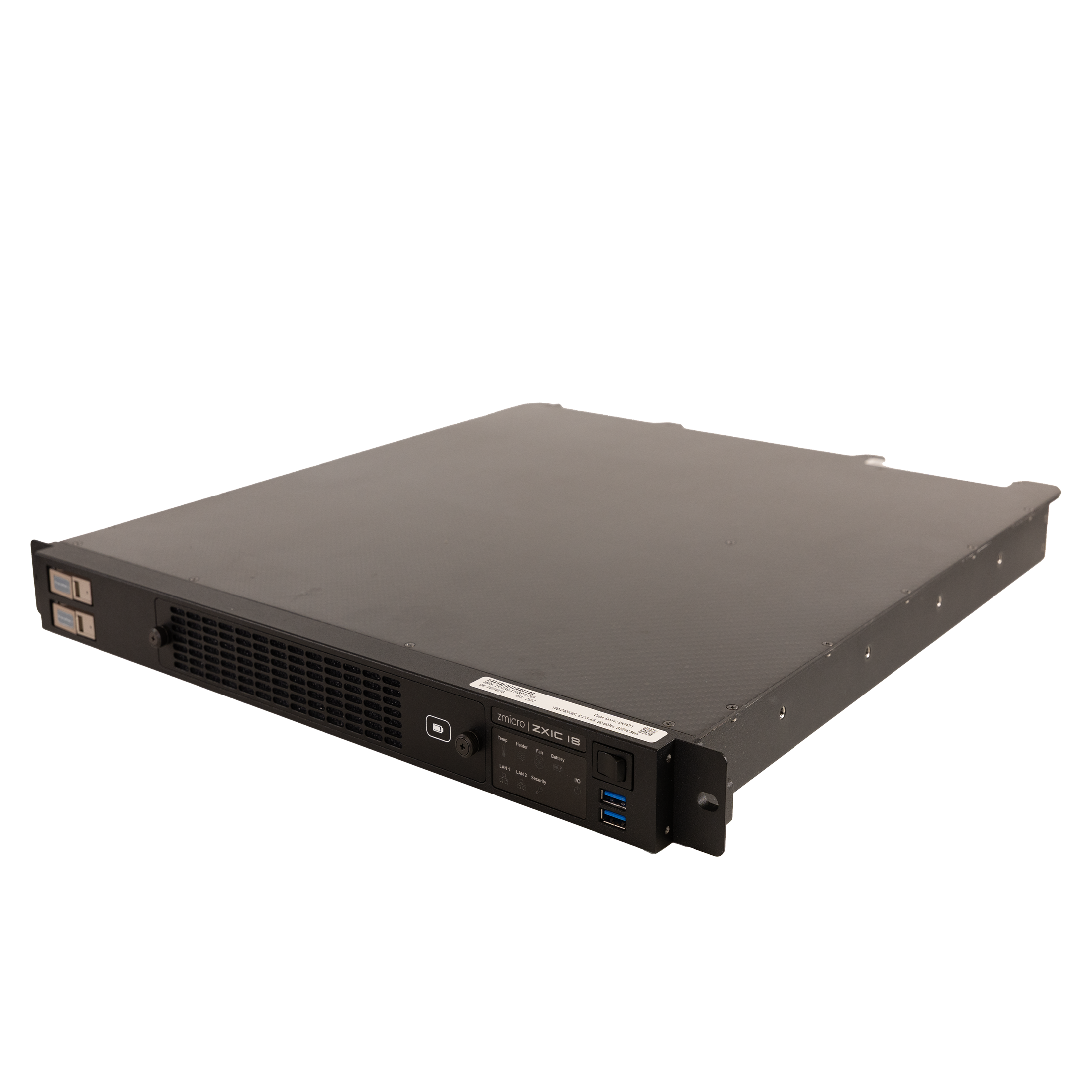

The Lisa Air Max is a 1U, 18-inch deep rackmount server built for manned aircraft with standard 19-inch rack infrastructure. Operating on 28VDC, it makes onboard ISR missions possible, processing high-resolution imagery and tracks for immediate viewing on a cabin-mounted mission computer.

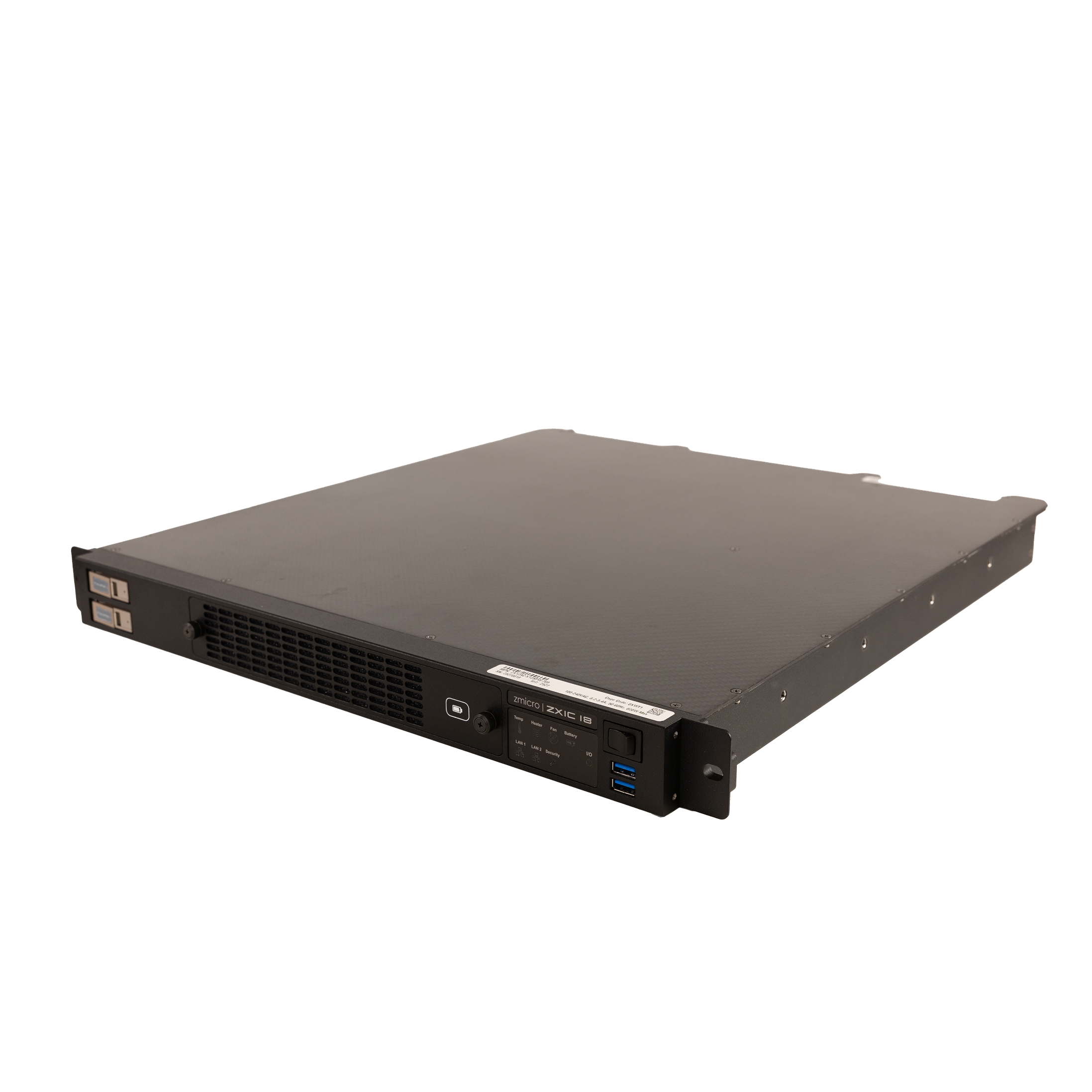

The Ground Max is an AC-powered 1U rackmount server optimized for UAS Ground Control Stations (GCS), mobile command vehicles, or shipboard environments. It is designed for installations where a rack-mounted solution is required to process raw data downlinked from the aircraft, serving finalized products to a separate mission computer for visualization and analysis.
.png)
For manned aircraft where standard rack space is limited or unavailable, the Lisa Air Lite provides identical processing capabilities in a modular, compact form factor. This 28VDC server is designed for flexible installation in non-standard equipment bays while maintaining the high-speed data processing required for real-time missions.
.png)
