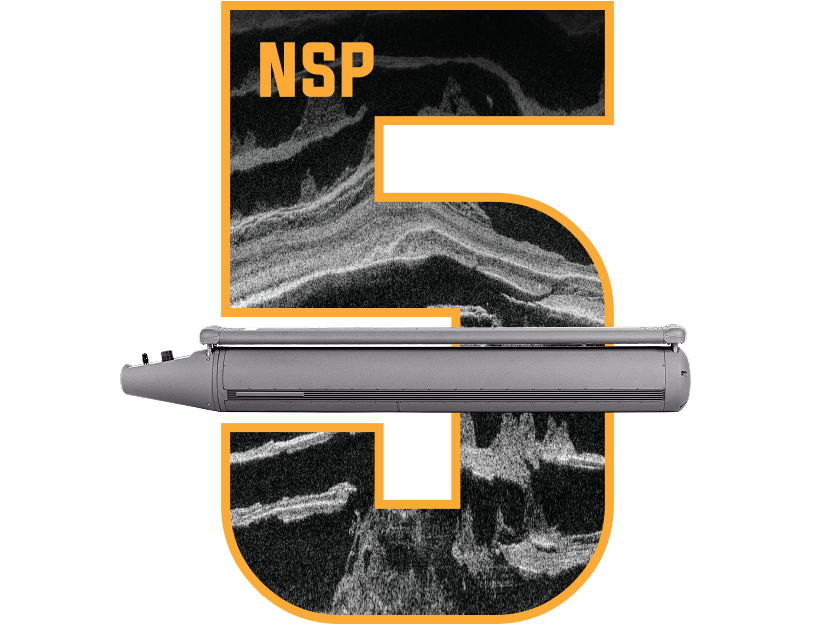

NSP-5

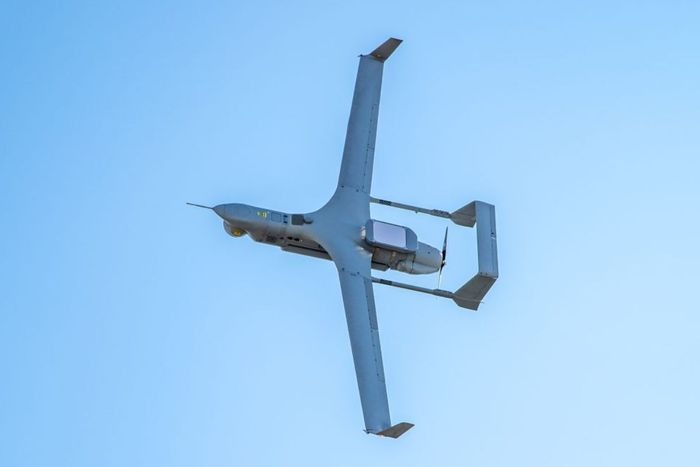

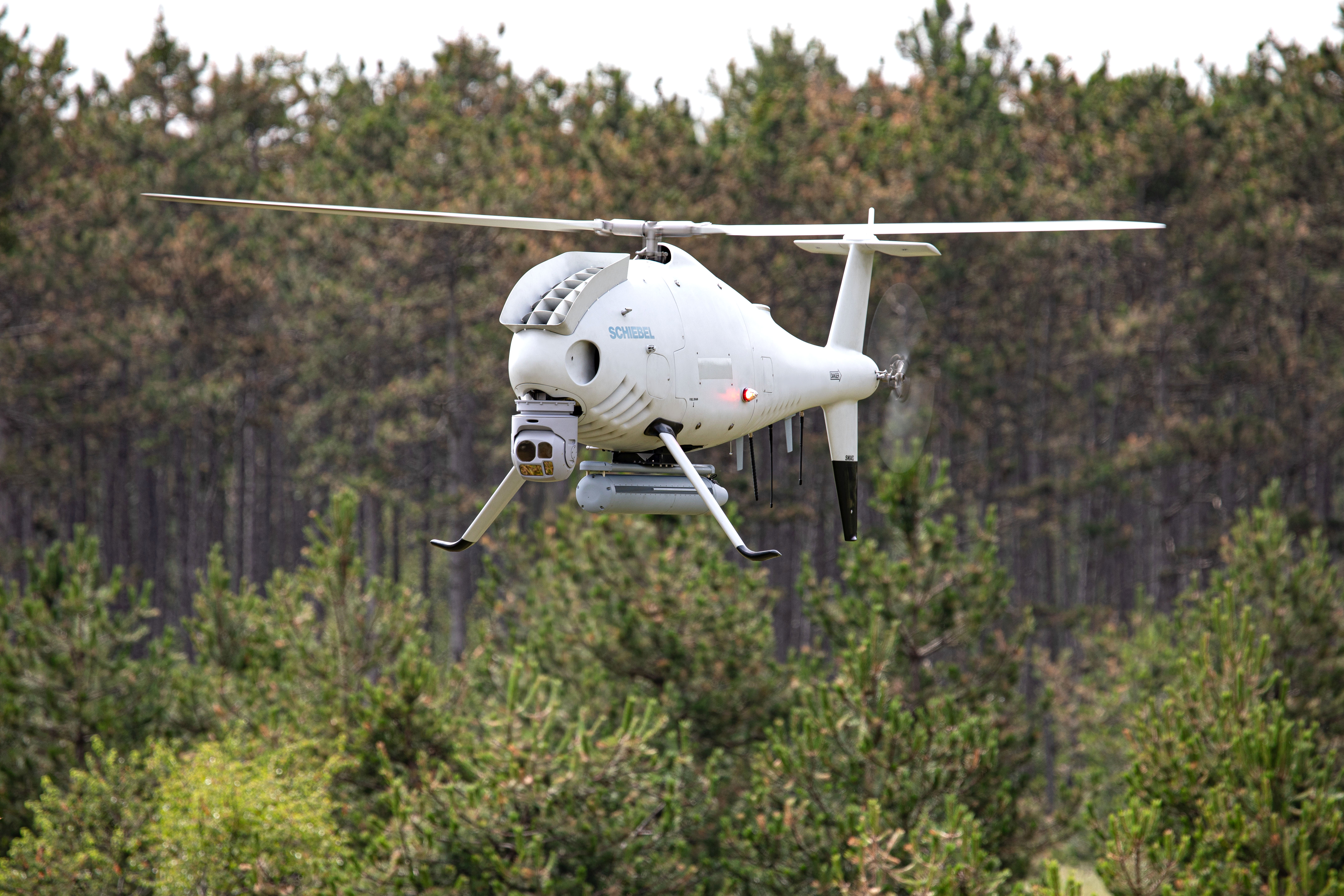

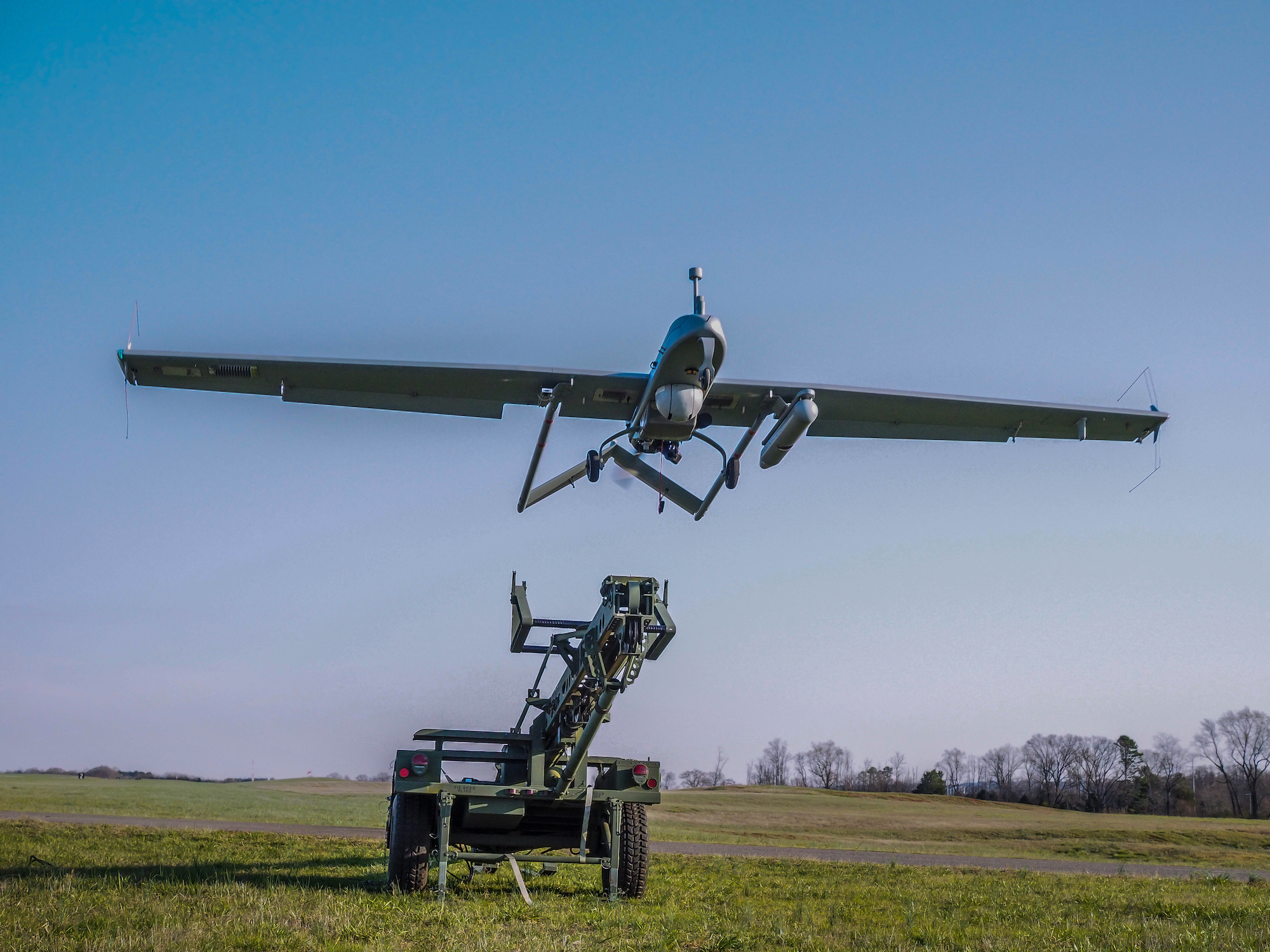

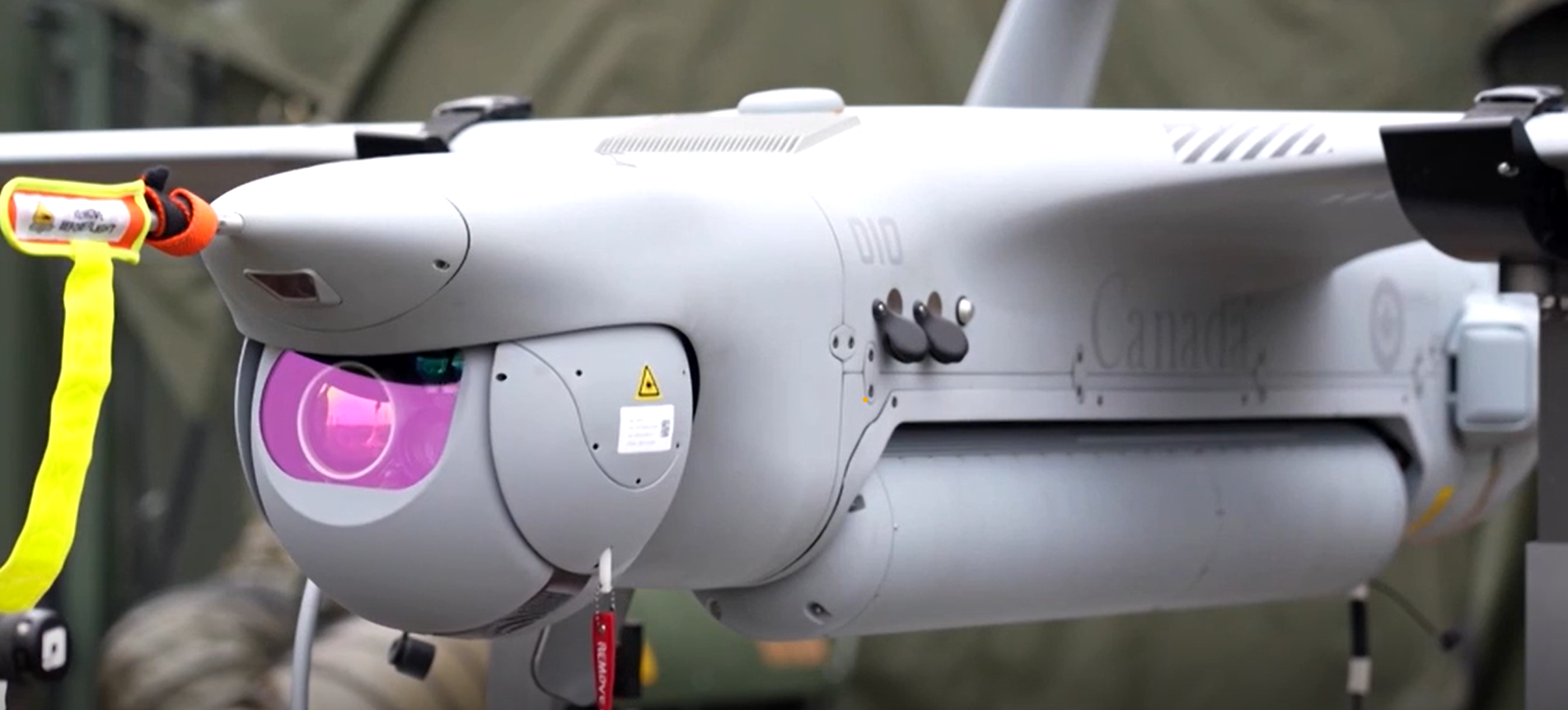

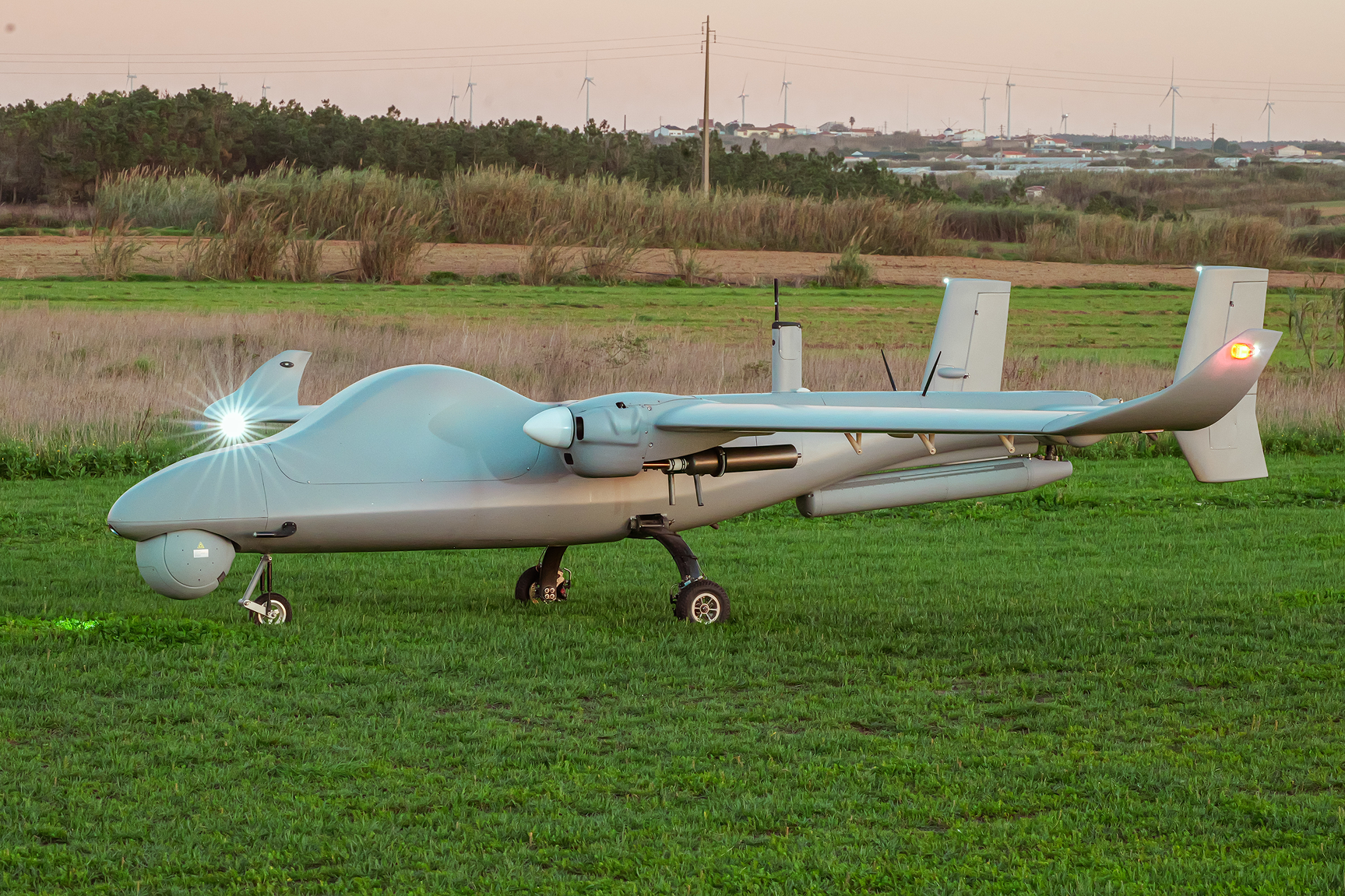

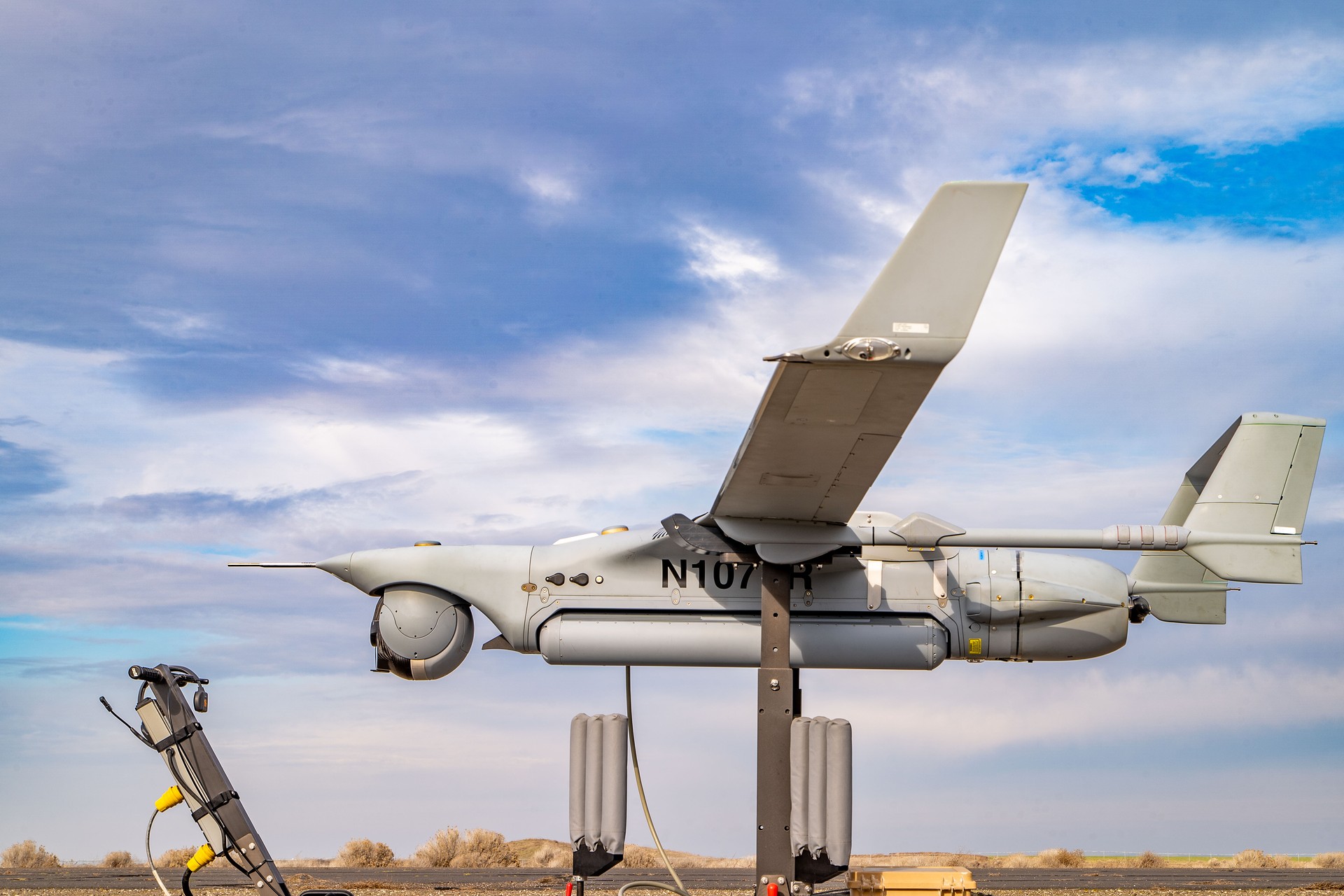

Designed for UAS platforms with greater payload capacity, the NSP-5 leverages increased transmit power and a larger aperture to extend operational range. It offers enhanced wide-area search and tracking performance, providing a step up in capability for missions requiring deep coverage and precision tracking in complex environments.

DOWNLOAD DATASHEET

VIEW SPECS

Key Performance Specifications

SAR Imaging Resolutions

0.1 to 10 m

SAR Imaging Range

47 KM (at 1 m resolution)

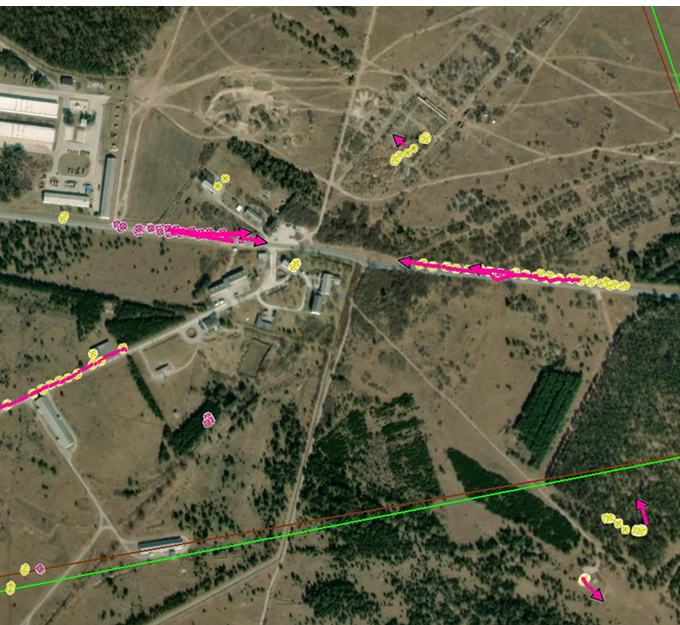

GMTI Vehicle Detection Range

21 KM

Maritime Detection and Geolocation (SAR)

172 NM (319 KM)

Maritime Detection and Tracking (MMTI)

101 NM (187 KM)

Maritime Classification (ISAR)

89 NM (165 KM)

Size, Weight and Power

Size

ModSAR Radar Electronics Assembly

2U MOD Payload

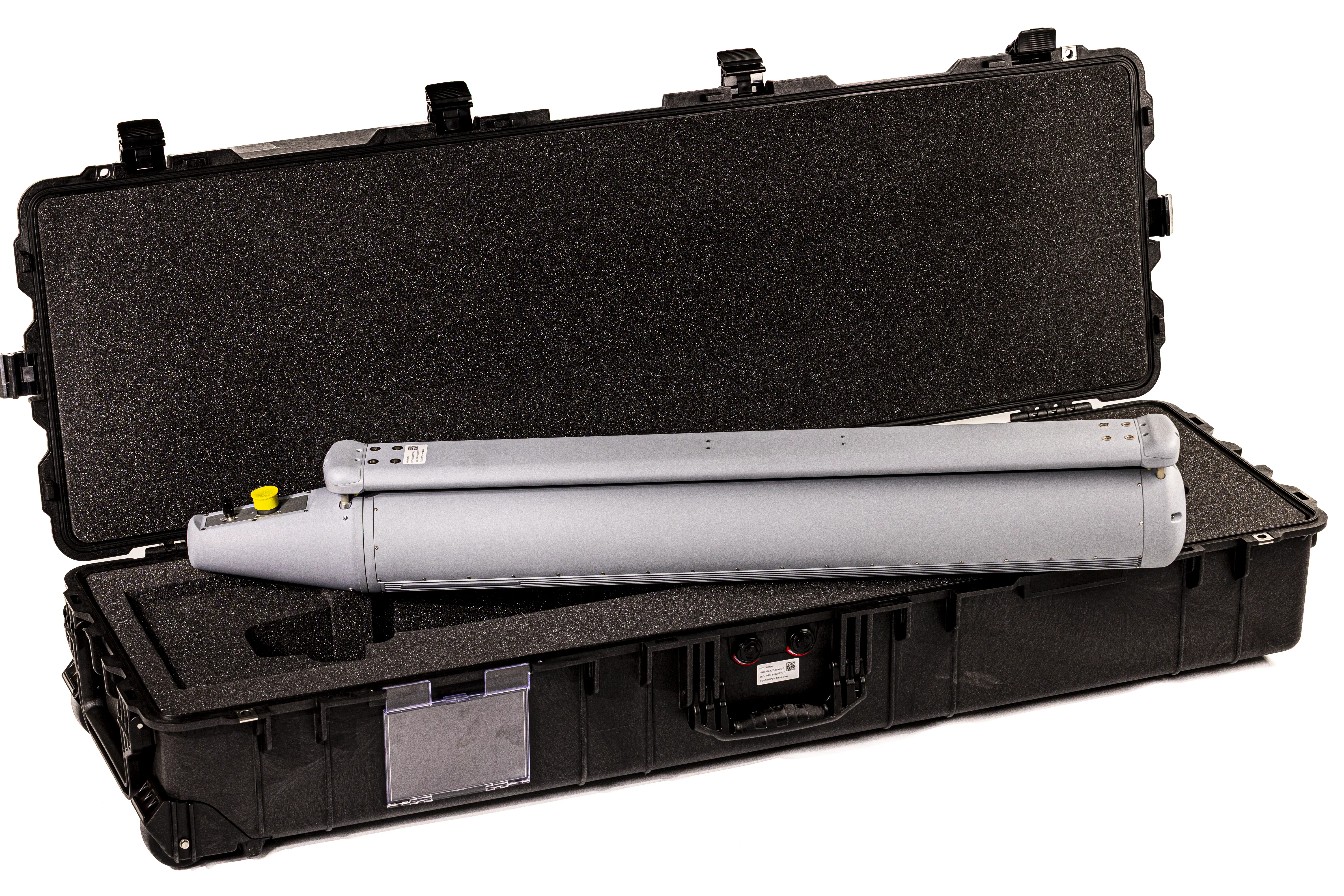

Antenna Assembly

Weight

16.5 LBS (7.5 KG)

Power

130 W, 28 VDC, 130W TYPICAL, 190 W MAX

Size

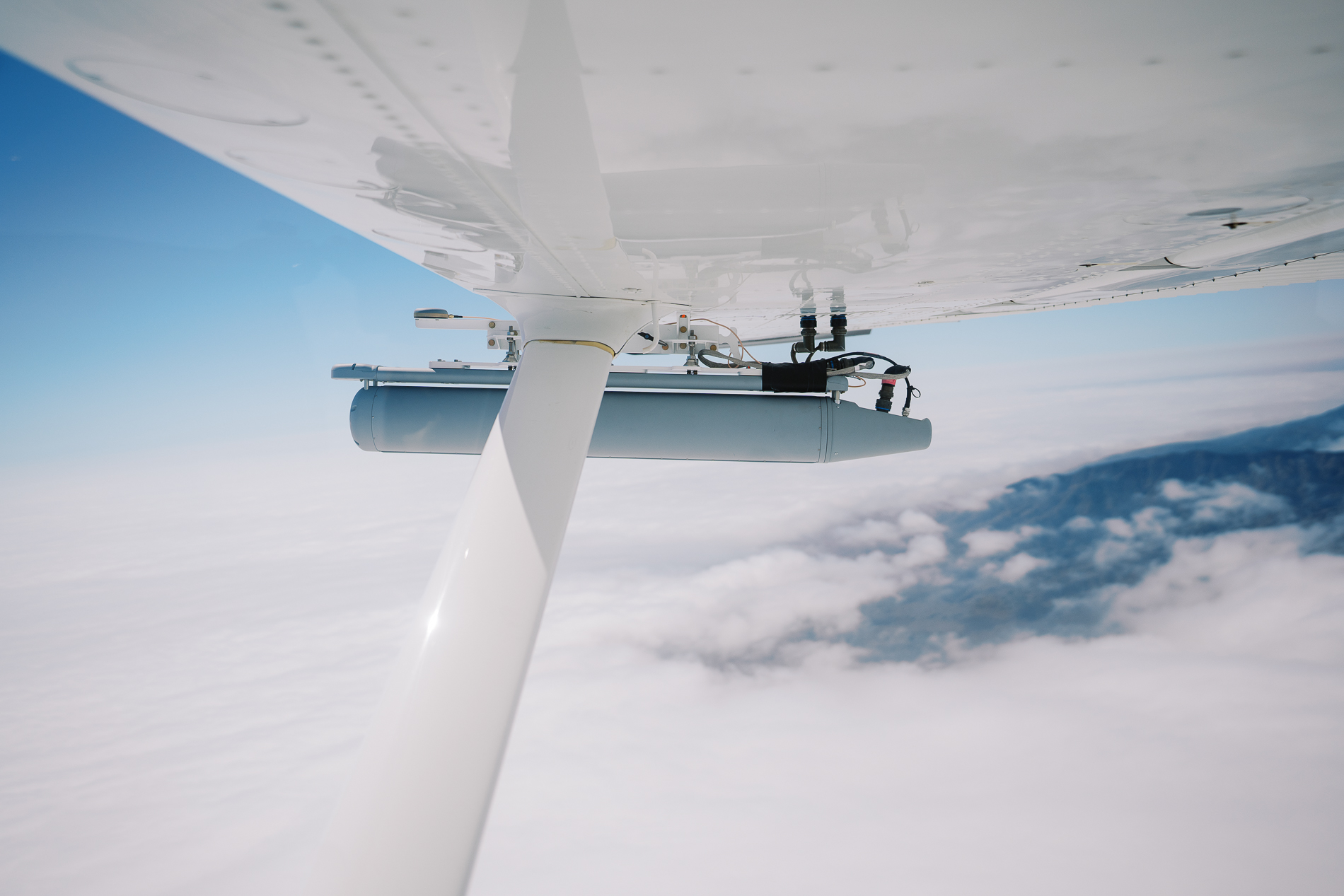

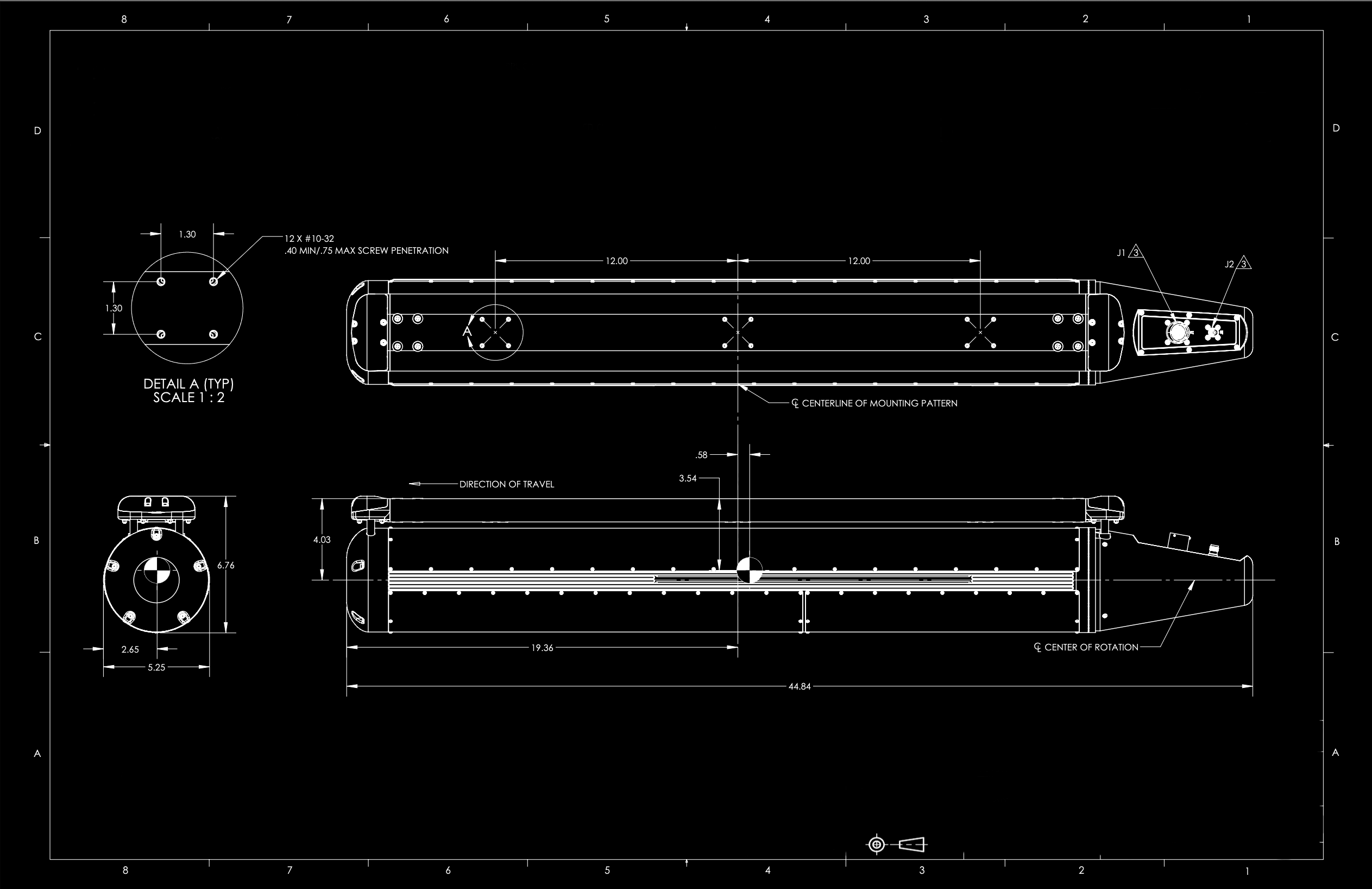

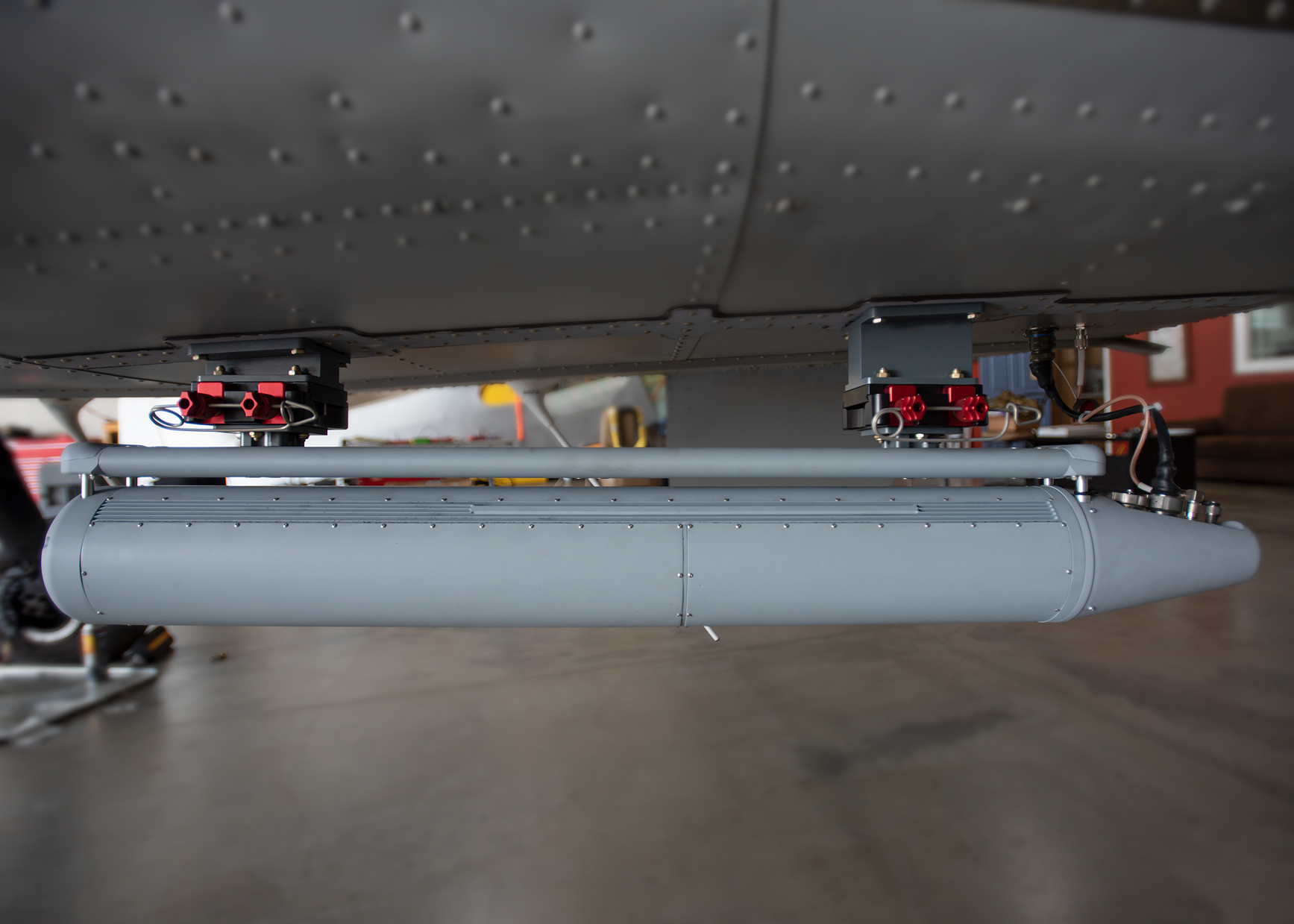

Standard Strongback Configuration

DIAMETER: 5.4 IN (13.7 CM)

LENGTH: 46.4 IN (117.9 CM)

HEIGHT: 6.8 IN (17.3 CM)

Weight

16.5 LBS (7.5 KG)

Power

130 W, 28 VDC, 130W TYPICAL, 190 W MAX

Included Services & Support

IMSAR delivers a complete operational capability, not just hardware. The standard service package ensures successful installation, operator proficiency, and continuous system evolution through regular software enhancements.

Integration & Operational Support

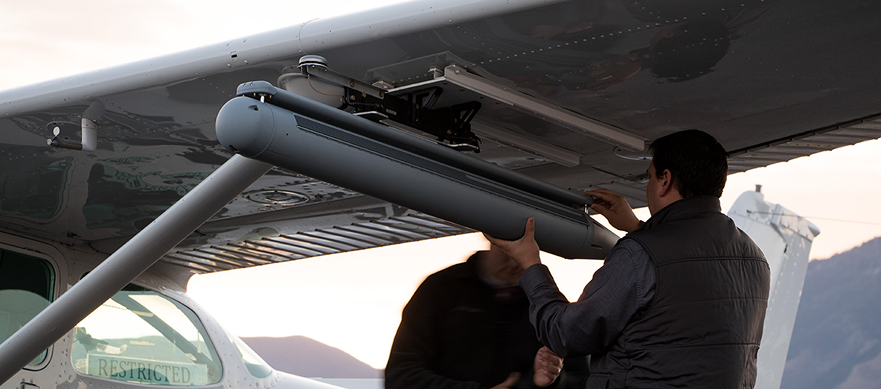

An IMSAR Field Operations Specialist (FOS) travels to the customer facility to verify physical installation and configure the system for the specific airframe. This support includes ground testing, frequency approval assistance, and operational oversight during initial shakedown flights to ensure the radar is integrated correctly and mission-ready.

Training & Technical Support

The purchase of a radar includes a comprehensive 4-day training course covering system operation and data analysis. Following certification, operators retain direct access to IMSAR’s technical support team via phone, video, or email for assistance with system familiarization and troubleshooting.

Warranty & Software Updates

The system includes a standard one-year hardware warranty and a one-year software support plan. This plan delivers regular updates that provide capability enhancements, new radar modes, and critical security patches, ensuring that the system evolves to meet emerging threats during the initial operational period.
