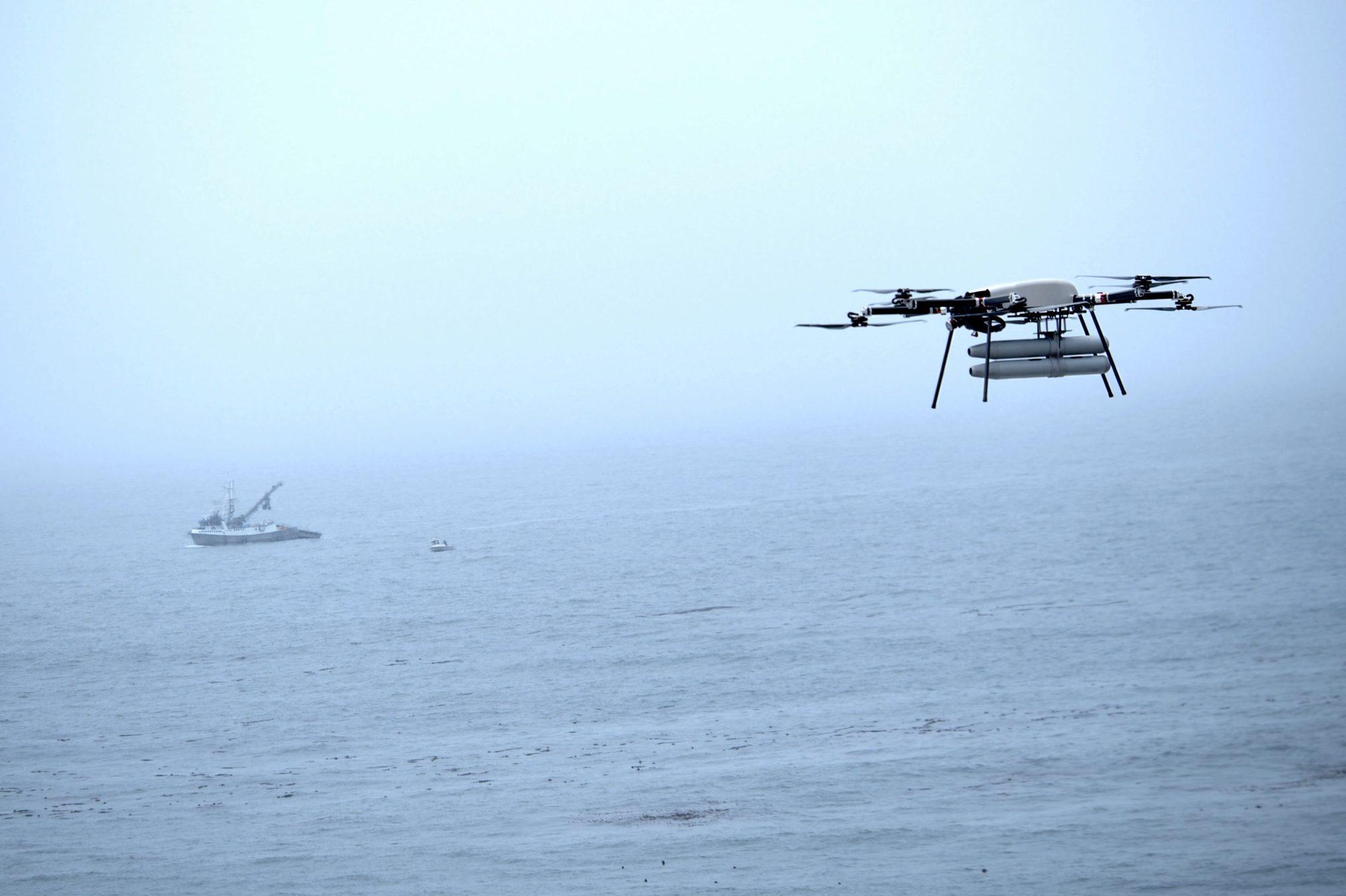

Gather intelligence in all weather, day or night, from small footprint Unmanned Aircraft Systems in land and maritime environments.

7-LB. MULTI-INT SAR/MTI RADAR

NSP-3

SIMPLE TO INTEGRATE

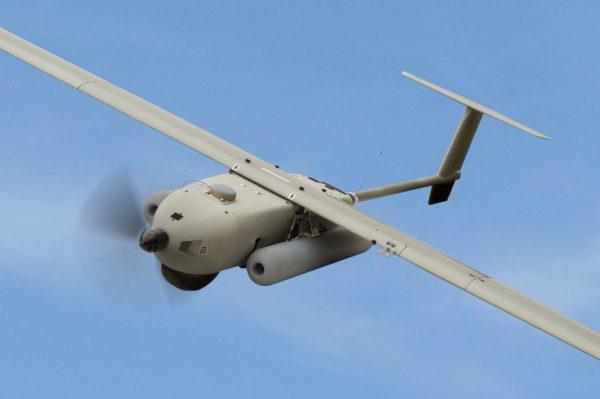

The NSP-3 is a multimode, low-Size, Weight, and Power (SWaP) radar system housed in two pods with the antenna subsystem in one pod and the radar and processing electronics in the other. Requiring only power, ethernet, and a connection to a GPS antenna to operate, the NSP-3 pod can be attached to an aircraft in a two pod saddle-bag configuration, with an externally mounted antenna pod and the radar and processing electronics located inside the fuselage, or with a bespoke mounting solution.

nsp-3_aerosonde

SIZE WEIGHT AND POWER

Dimensions Diameter: 3.75 in (9.5 cm)
Length: 30.6 in (77.6 cm)
Height: 3.75 in (9.52 cm)
Weight 7.4 lbs (3.35 kg)
SAR & GMTI Power 81 W

KEY SPECIFICATIONS

Range Resolution 0.1, 0.3, 0.5, 1, 2, 5, 10m
Maritime Detection Range 35.5 nmi (Target Dependent)
SAR Imaging Range 14 km (at 1m Resolution)
GMTI Detection Range  6 km
Frequency Ku
Capabilities SAR, CCD/MCD, MTI, Maritime

SIMPLE TO OPERATE

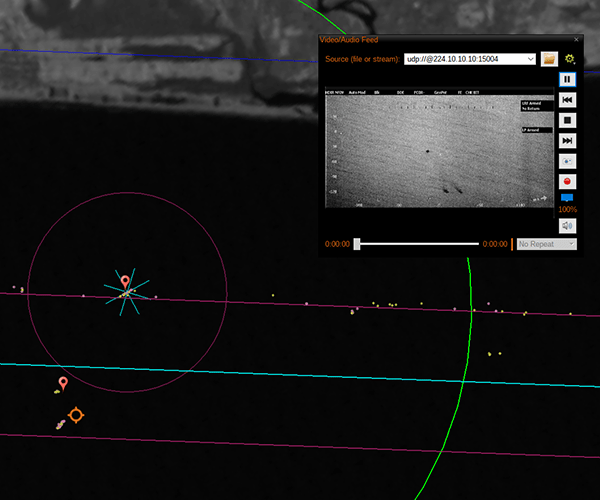

The NSP-3 radar system is simple to operate with IMSAR’s Lisa 3D Command and Control (C2) and Processing, Exploitation, and Dissemination (PED) software. The NSP-3 can also be controlled through the Radar API which enables other software suites to slew the radar to an AOI and immediately begin collecting data, access data products, and system status information.

SIMPLE TO UNDERSTAND

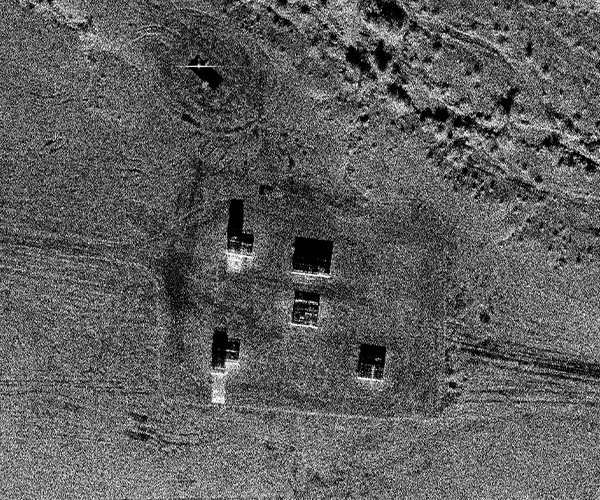

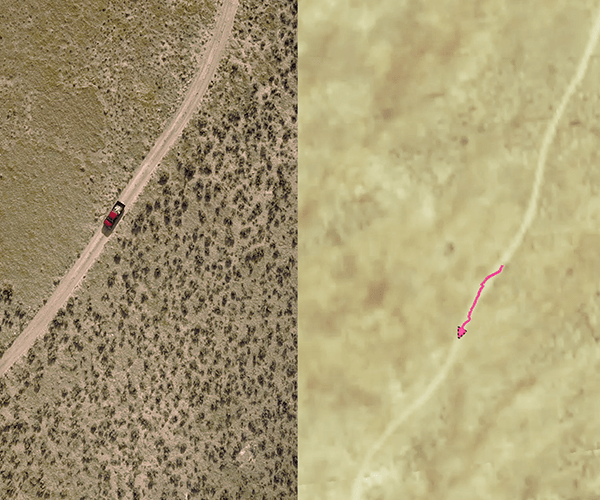

Starting with high quality radar data generated by the NSP-3, advanced processing techniques are used to create a variety of data products enabling all weather Intelligence, Surveillance, and Reconnaissance (ISR) and surface search missions.

Want to see more?

Visit our LinkedIn, YouTube and Vimeo accounts for regular updates and video content

EXPAND YOUR CAPABILITIES WITH IMSAR’S 7-LB. MULTI-INT SAR/MTI RADAR.

At IMSAR, we believe Intelligence Is Everything, which is why we design and manufacture the most advanced, low-SWaP, all-weather, multi-mode radars. Contact us for further information about our radars’ capabilities and how to integrate onto your platform.
