NSP-3 SYSTEM

TACTICAL IMAGING AND INTELLIGENCE RADAR FOR ANY PLATFORM.

The NSP-3 system configuration further simplifies integration required to provide multiple capabilities on manned or unmanned platforms.

View Specifications
nsp-3

INTELLIGENCE IS EVERYTHING

The NSP-3 configuration of the Nano SAR provides multiple capabilities in two small, aerodynamic pods. The configuration is small enough to increase the capabilities of small, unmanned systems, capabilities that were previously only available on larger unmanned system or manned platforms. Our two-pod system includes the NanoSAR radar processing GPS units, Inertial Measurement Unit (IMU), Electronically Scanned Array (ESA) antennas, and elevation gimballing. Because the NSP-3 is compact and easy to install, the entire system can be quickly added or removed from any unmanned aircraft.

MULTI-INT CAPABILITIES

Every year, technology continues to shrink in size yet grow in capability. World-class imaging radar technology is no different. While being the smallest of its kind, the NSP-3 packs some very powerful capabilities.
SYNTHETIC APERTURE RADAR

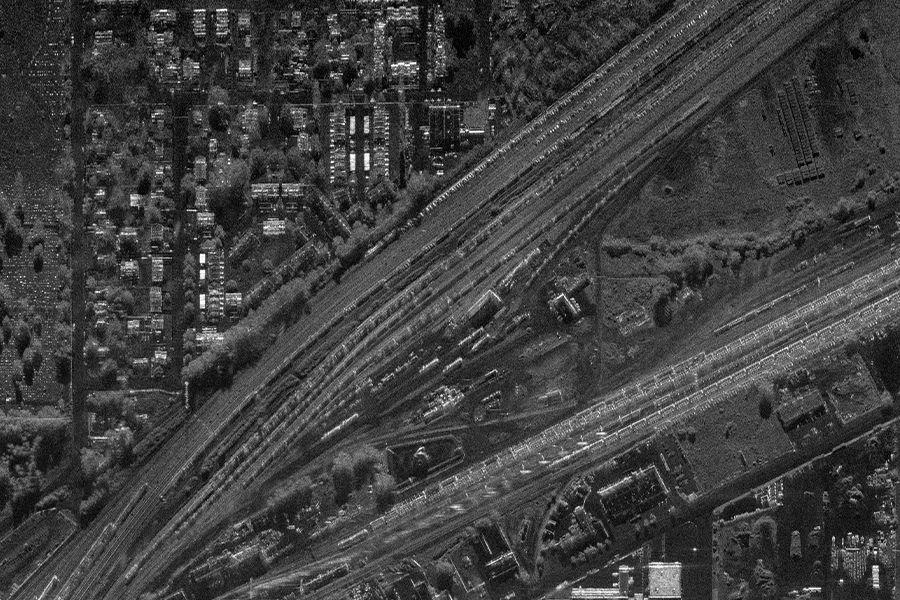

SAR is an all-weather, day or night, imaging system used to generate high-resolution imagery of the ground from an aerial platform.

MOVING TARGET INDICATOR

MTI identifies and tracks moving targets by sending out radar pulses and analyzing the Doppler shift of the returned signals.

COHERENT CHANGE DETECTION

CCD processes two SAR images of the same scene taken at different times to create a new image highlighting the differences.

MARITIME MONITORING

SAR signal returns from water and the signal returns from targets provide a high-contrast, easily discernable identification.

Technical Specifications

nsp3features

SIZE WEIGHT AND POWER

Dimensions 2 pods:
Diameter: 3.75 in (9,5 cm)
Height: 30.5 in (77.5 cm)
Weight 7.4 lbs (3.4 kg)
SAR Power 65 W
GMTI Power 85 W

KEY SPECIFICATIONS

Range Resolution Very Fine, 0.3, 0.5, 1, 2, 5, 10m
Maritime Detection Range 12.5 km
SAR Imaging Range 10 km (at 1m Resolution)
GMTI Detection Range  6+ km
Frequency; KU (Available: X)
Capabilities; SAR, CCD/MCD, MTI, Maritime
Capture your vision with high-resolution radar imagery with IMSAR systems.

The more you can see, the more you know; and the more you know, the more you succeed. Let’s put our all-weather, high-resolution imaging radar with advanced capabilities on your bird.
