DATASHEET GET NSP-7 Blk II

Greater ranges than the Blk I with minimal SWaP increase. Gather actionable intelligence in all weather, day or night, in land and maritime environments.

EXTENDED RANGE MULTI-INT SAR/MTI RADAR

NSP-7 Blk II

SIMPLE TO INTEGRATE

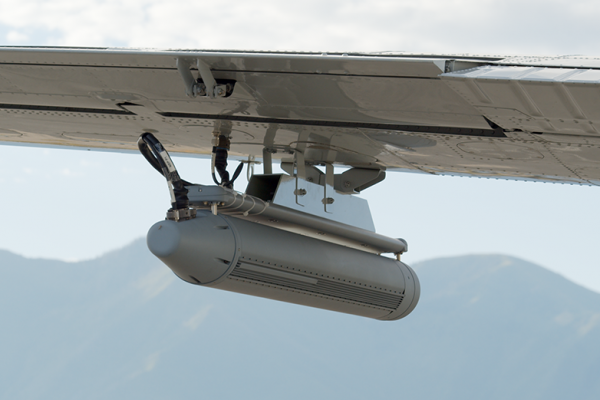

The NSP-7 Blk II pod can be attached to an aircraft using MIL-Spec 14” lug mounts or via an adapter plate to the integral mounting points on the NSP-7 Blk II strongback rail. IMSAR also has the in-house expertise to design custom integrations for specific platforms when needed.

MSA_King_Air_1Jul2020_09_1.3.1_small

SIZE WEIGHT AND POWER

Dimensions Diameter: 5.4 in (13.7cm)
Length: 58.1 in (147.6 cm)
Height: 6.8 in (17.3 cm)
Weight 25 lbs (11.4 kg)
SAR & GMTI Power 275 W

KEY SPECIFICATIONS

Range Resolution 0.3, 0.5, 1, 2, 5, 10m
Maritime Detection Range 90 nmi (Target Dependent)
SAR Imaging Range 48 km (at 1m Resolution)
GMTI Detection Range  21 km
Frequency; Ku
Capabilities; SAR, CCD/MCD, MTI, Maritime

SIMPLE TO OPERATE

The NSP-7 Blk II radar system is simple to operate with IMSAR’s Lisa 3D Command and Control (C2) and Processing, Exploitation, and Dissemination (PED) software. The NSP-7 Blk II can also be controlled through the Radar API which enables other software suites to slew the radar to an AOI and immediately begin collecting data, access data products, and system status information.

SIMPLE TO UNDERSTAND

Starting with high quality radar data generated by the NSP-7 Blk II, advanced processing techniques are used to create a variety of data products enabling all weather Intelligence, Surveillance, and Reconnaissance (ISR) and surface search missions.

EXPAND YOUR CAPABILITIES WITH IMSAR’S EXTENDED RANGE MULTI-INT SAR/MTI RADAR.

At IMSAR, we believe Intelligence Is Everything, which is why we design and manufacture the most advanced, low-SWaP, all-weather, multi-mode radars. Contact us for further information about our radars’ capabilities and how to integrate onto your platform.
