DATASHEET GET NSP-7
In both land and maritime environments, gather actionable intelligence in all weather, day or night.

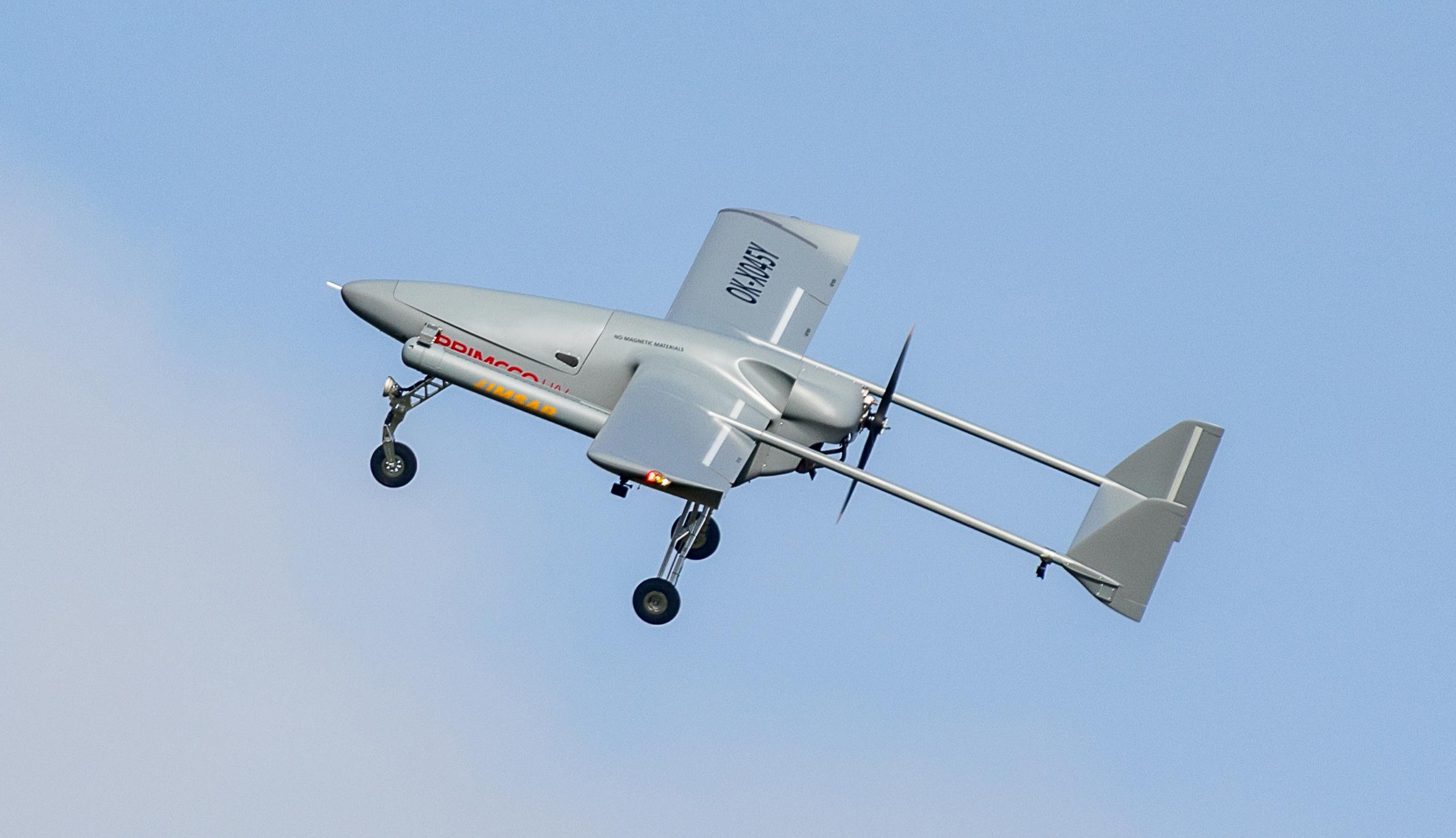

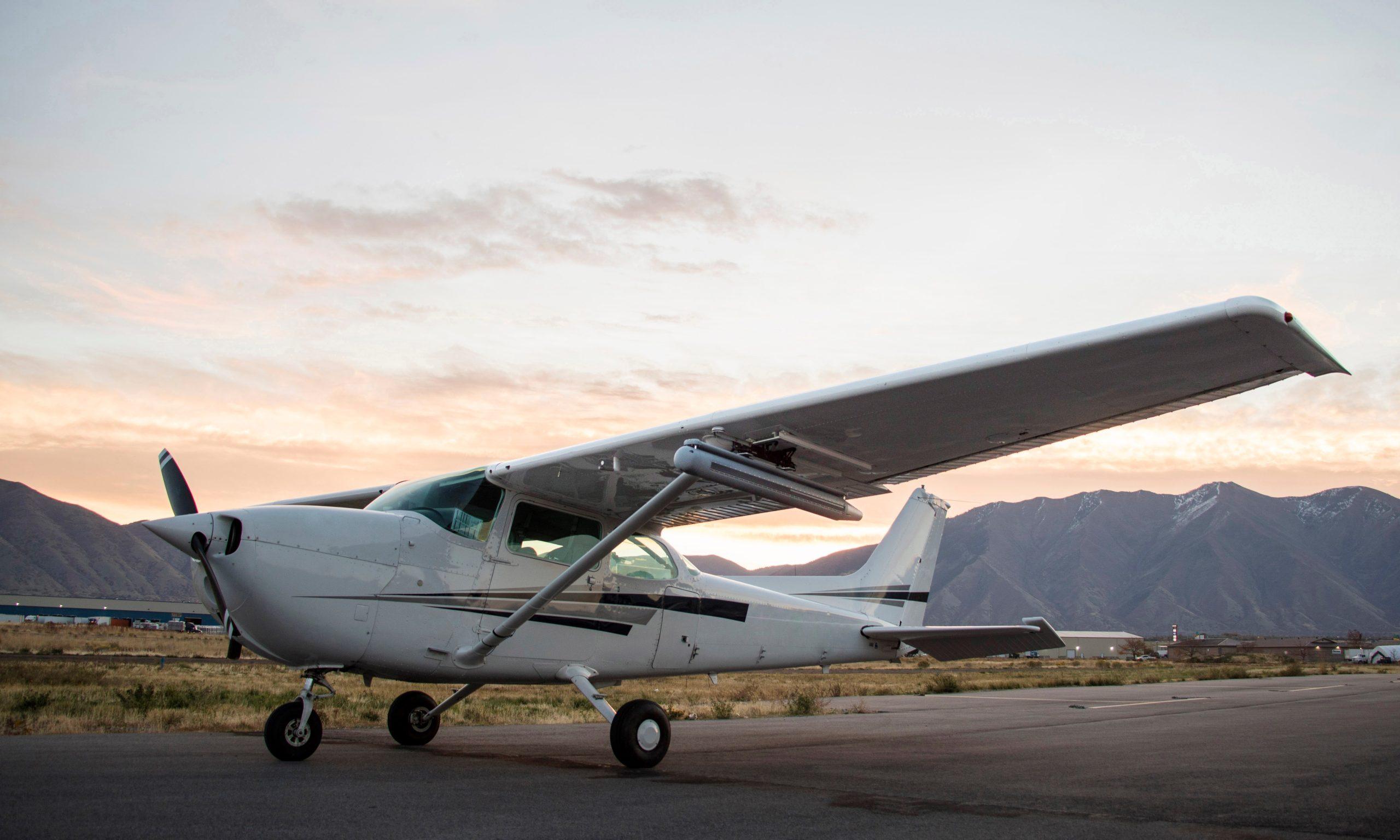

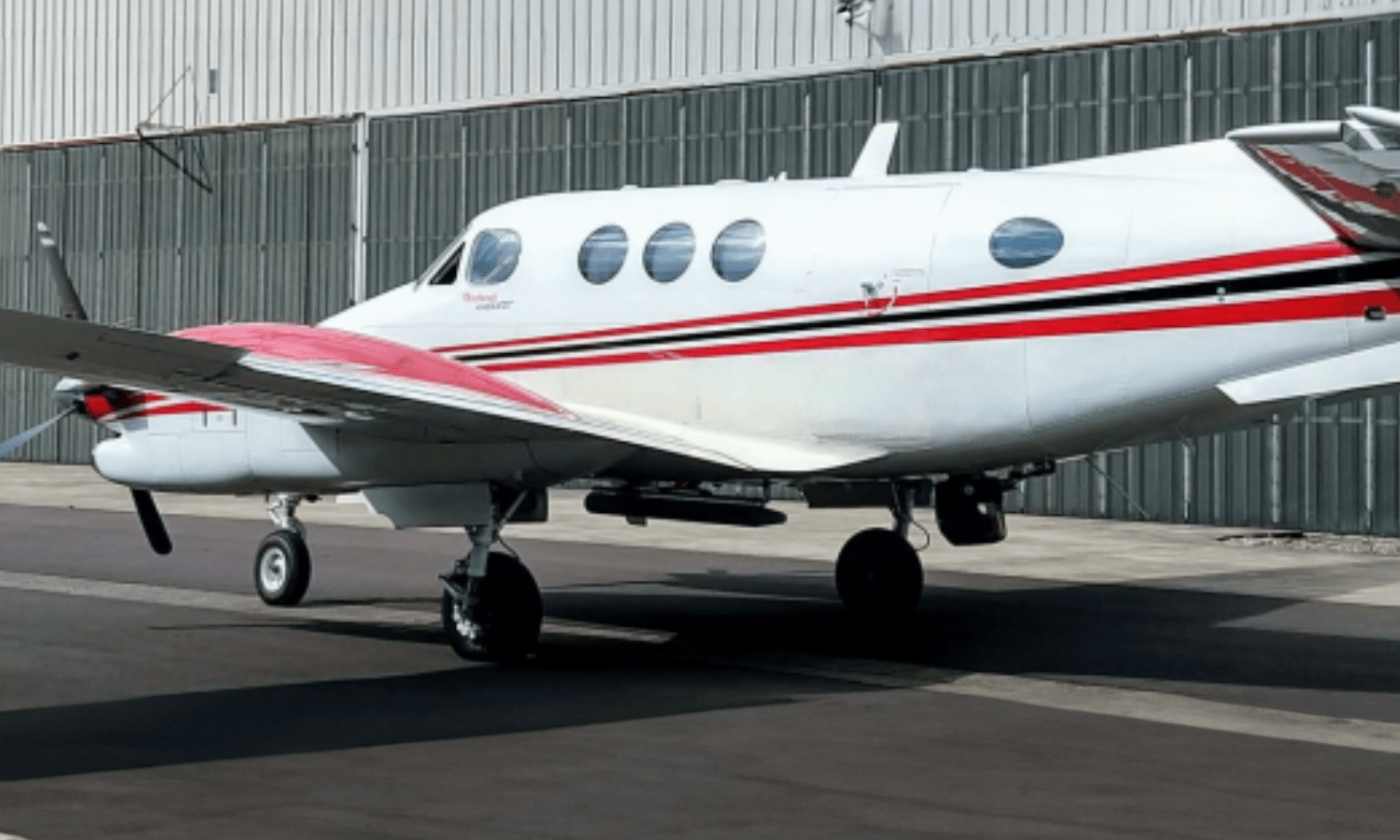

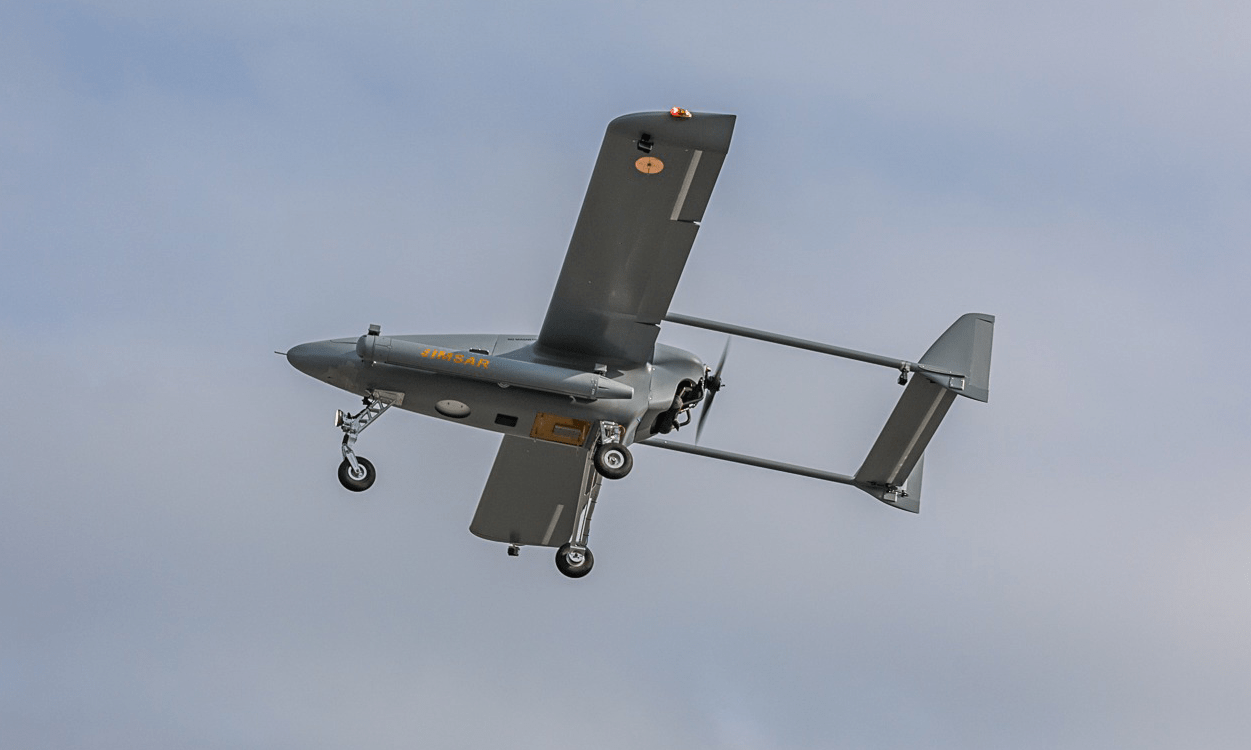

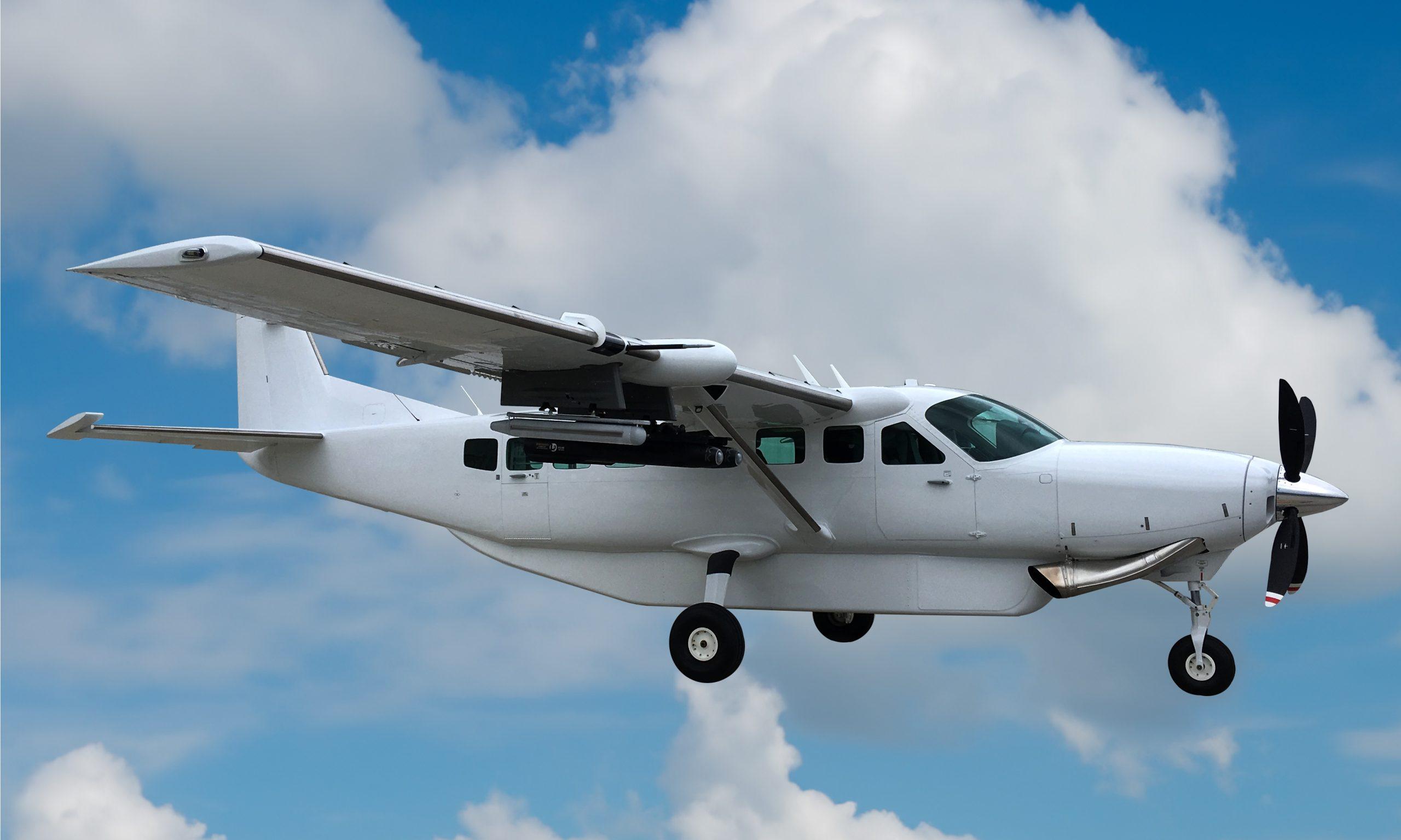

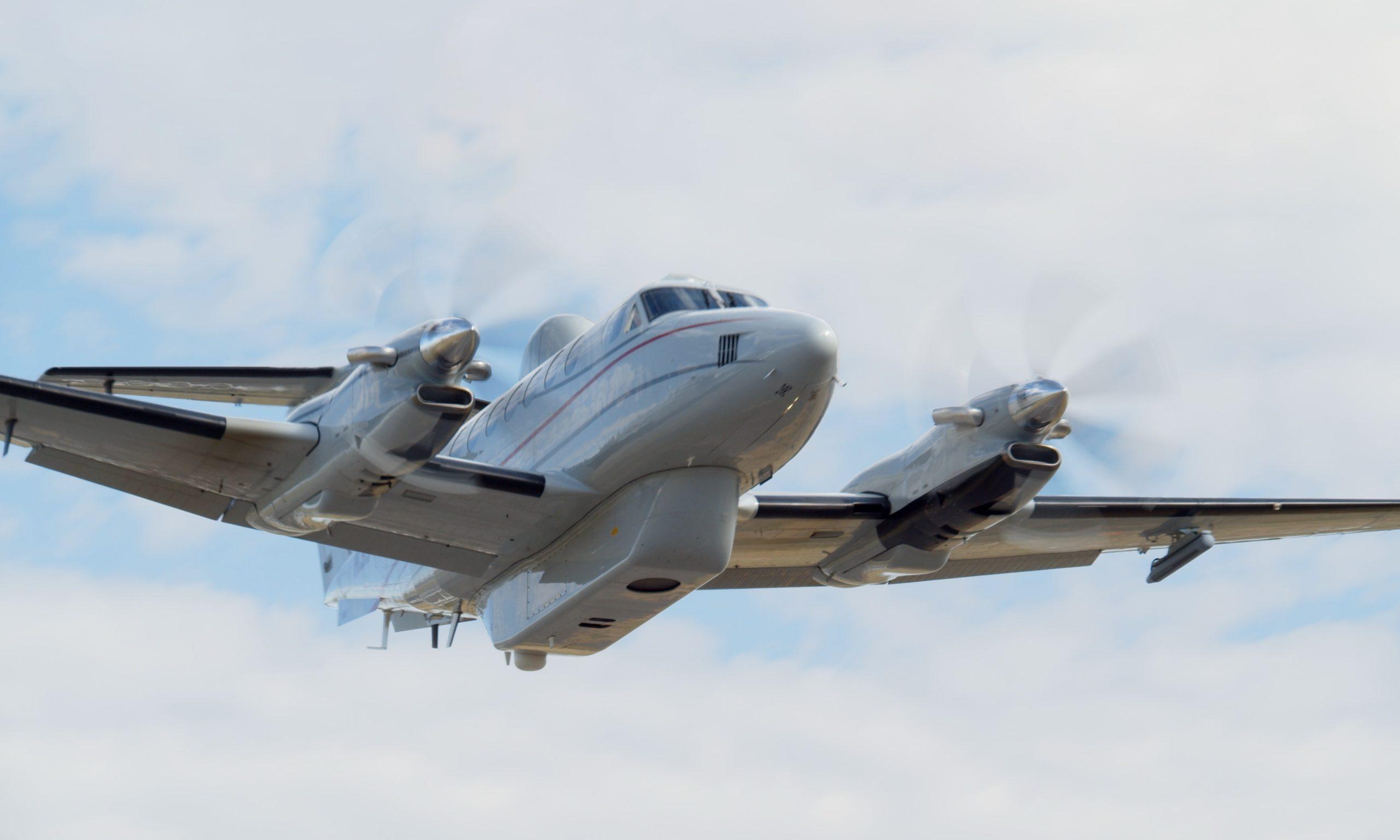

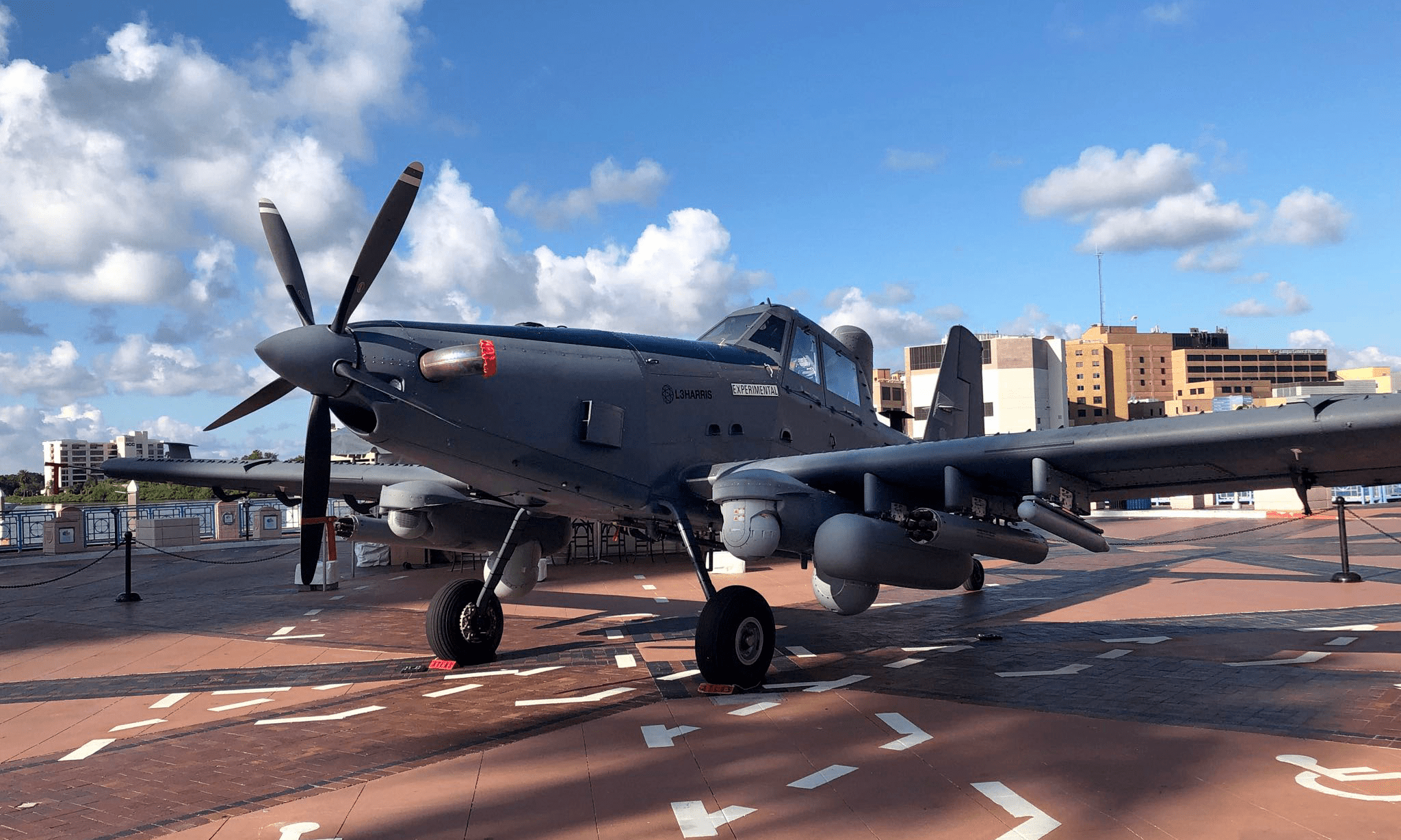

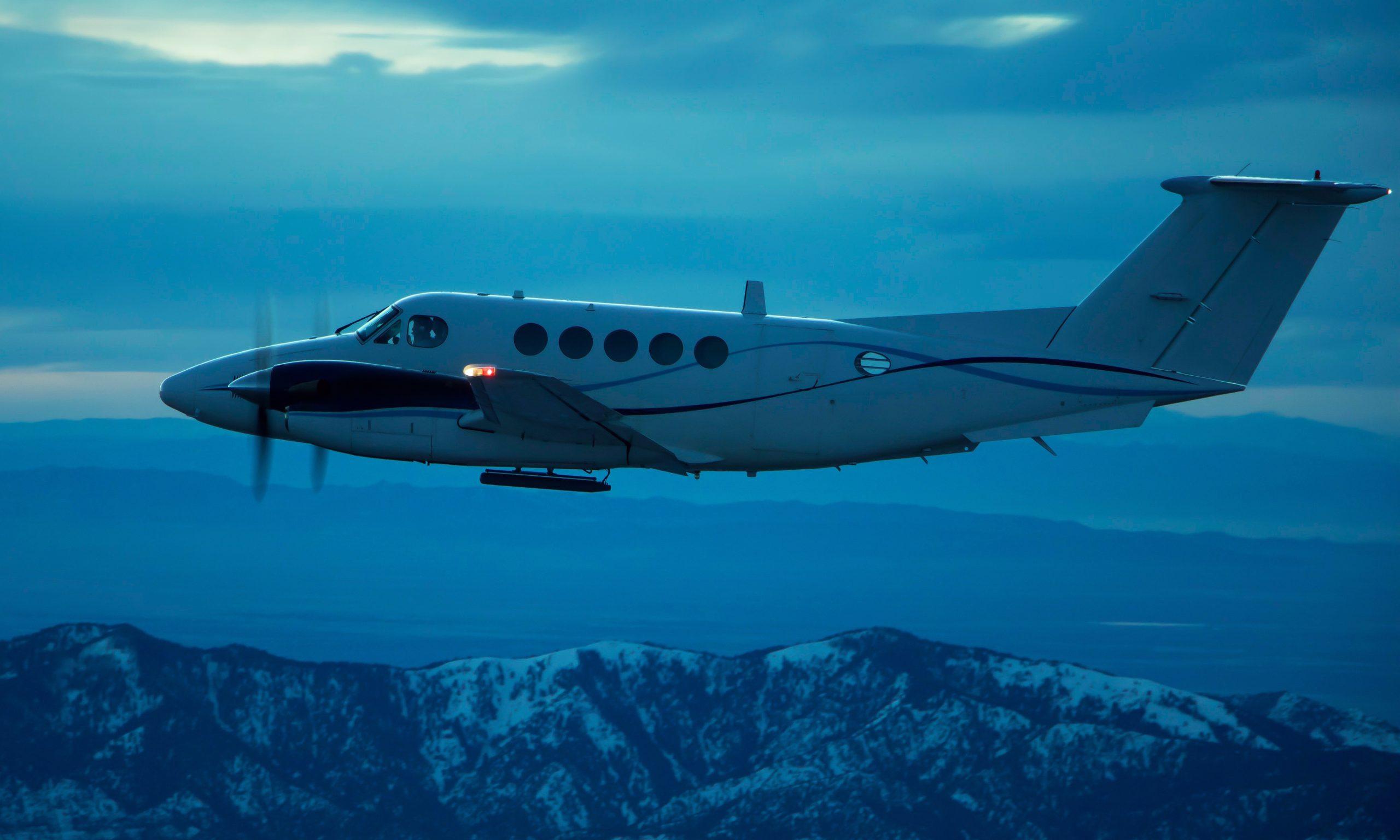

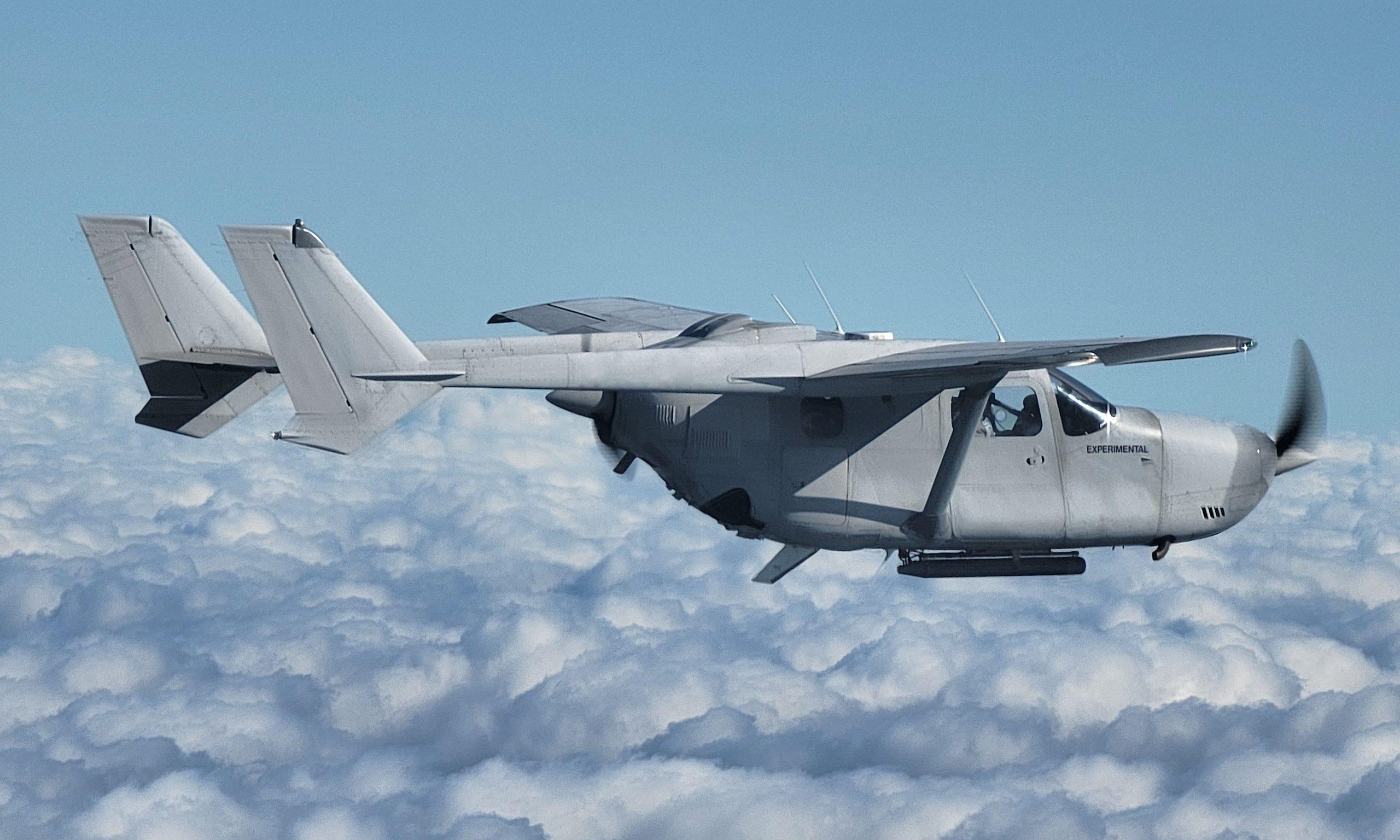

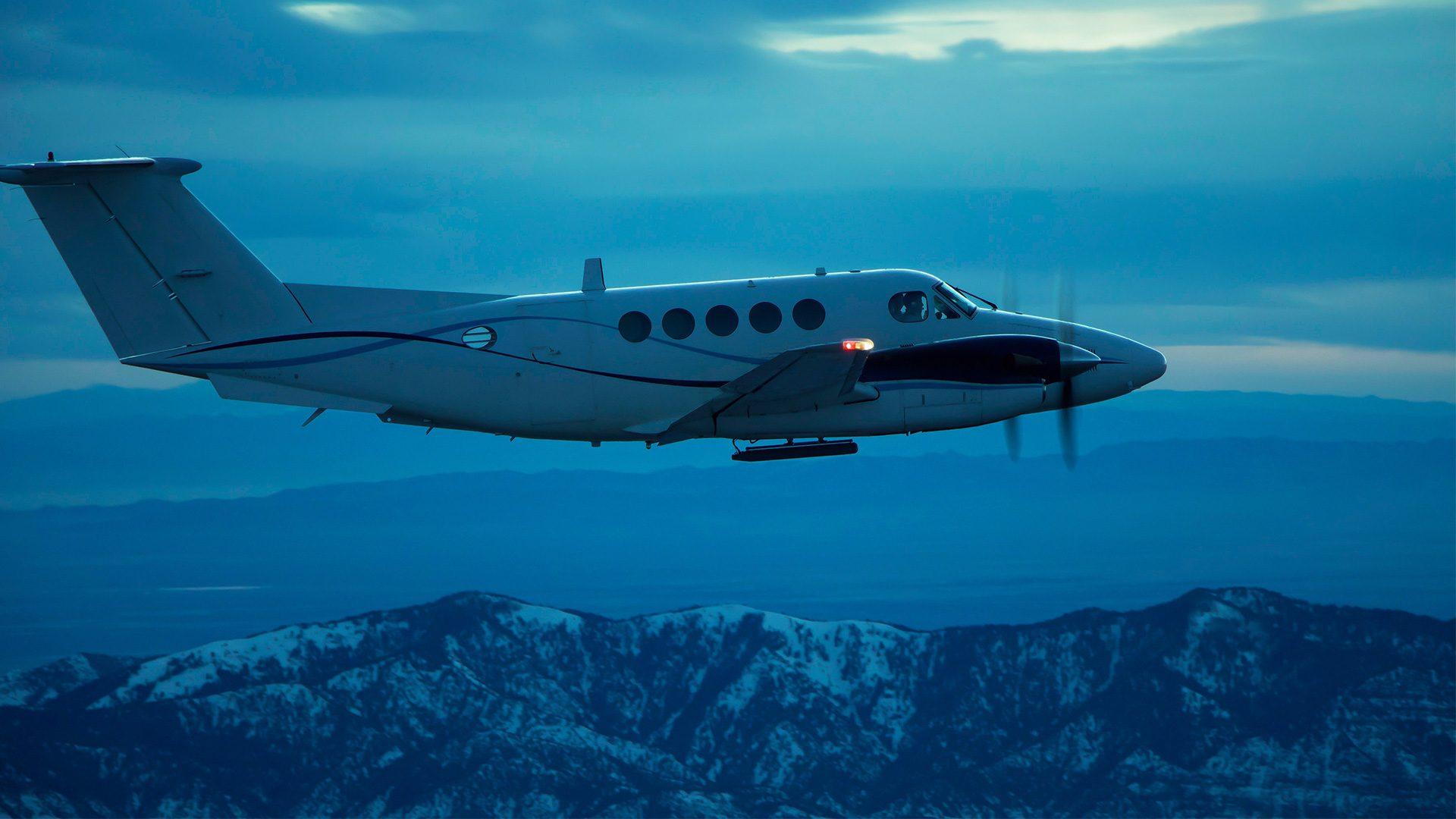

Designed to fly on Group 4-5 unmanned platforms and manned aircraft.

HIGHLY CAPABLE MULTI-MODE, MULTI-DOMAIN SAR/MTI RADAR

NSP-7

SIMPLE TO INTEGRATE

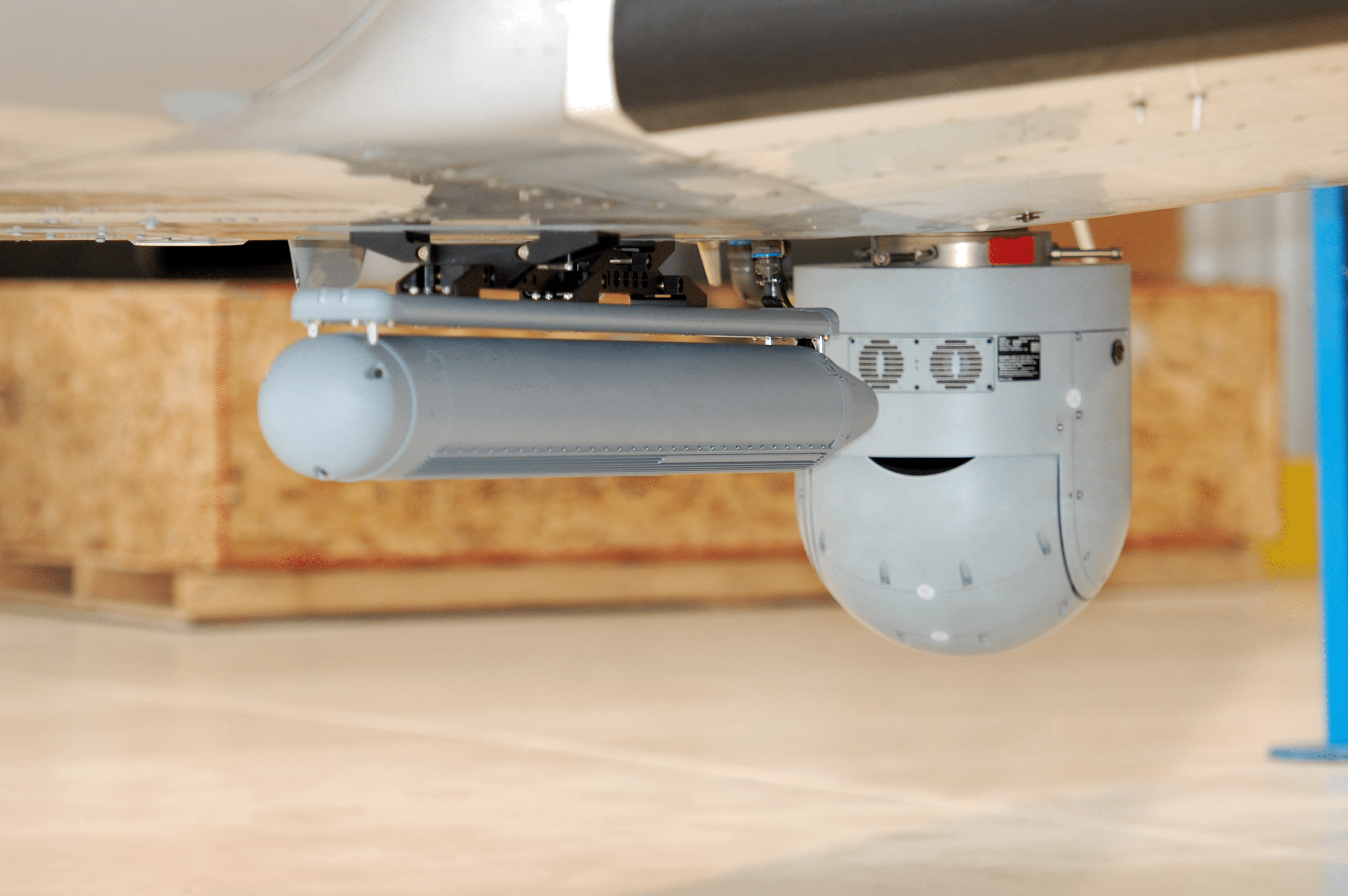

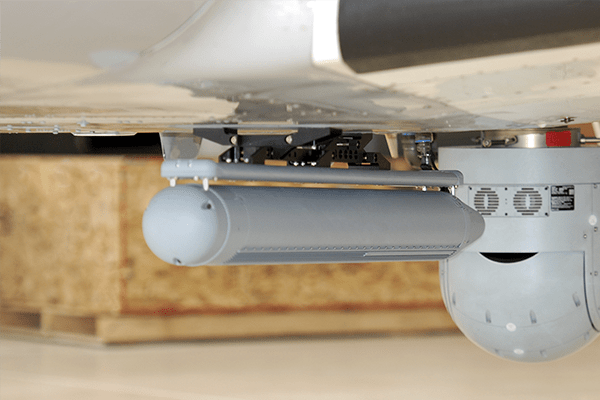

The NSP-7 pod can be attached to an aircraft using MIL-Spec 14” lug mounts or via an adapter plate to the integral mounting points on the NSP-7 strongback rail. IMSAR also has the in-house expertise to design custom integrations for specific platforms when needed.

nsp7_int_01

SIZE WEIGHT AND POWER

Dimensions

(Standard Strongback Configuration)

Diameter: 5.4 in (13.7 cm)
Length: 58.1 in (147.6 cm)
Height: 6.8 in (17.3 cm)

Weight

(Standard Strongback Configuration)

24 lbs (10.9 kg)
SAR & GMTI Power 300 W configurable, 28 VDC

KEY SPECIFICATIONS

Range Resolution 0.1, 0.3, 0.5, 1, 2, 5, 10 m
Maritime Detection Range 185 NM (Target Dependent)
SAR Imaging Range 55 km (at 1 m Resolution)
GMTI Detection Range 24 km
Frequency Ku
Capabilities SAR, CCD/MCD, MTI, Maritime

SIMPLE TO OPERATE

The NSP-7 radar system is simple to operate with IMSAR’s Lisa 3D Command and Control (C2) and Processing, Exploitation, and Dissemination (PED) software. The NSP-7 can also be controlled through the Radar API which enables other software suites to slew the radar to an AOI and immediately begin collecting data, access data products, and system status information.

SIMPLE TO UNDERSTAND

Starting with high quality radar data generated by the NSP-7, advanced processing techniques are used to create a variety of data products enabling all weather Intelligence, Surveillance, and Reconnaissance (ISR) and surface search missions.

Want to see more?

Visit our LinkedIn, YouTube and Vimeo accounts for regular updates and video content

EXPAND YOUR CAPABILITIES WITH IMSAR’S HIGHLY CAPABLE MULTI-MODE, MULTI-DOMAIN SAR/MTI RADAR.

At IMSAR, we are democratizing radar by making it more usable, affordable, and accessible than ever before, which is why we design and manufacture the most advanced, low-SWaP, all-weather, multi-mode radars. Contact us for further information about our radars’ capabilities and how to integrate onto your platform.
